http://www.pioneerelectronics.com

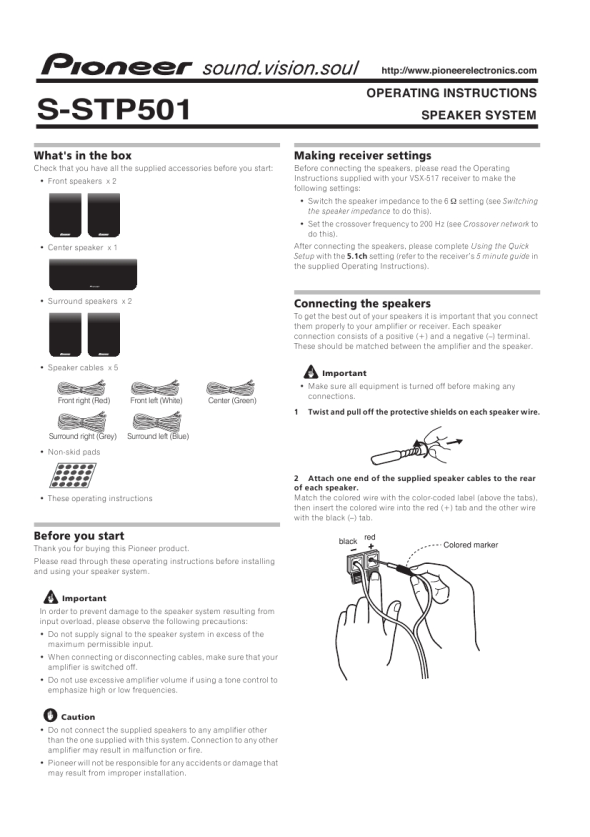

S-STP501
What's in the box
Check that you have all the supplied accessories before you start: � Front speakers x 2
OPERATING INSTRUCTIONS SPEAKER SYSTEM
Making receiver settings
Before connecting the speakers, please read the Operating Instructions supplied with your VSX-517 receiver to make the following settings: � Switch the speaker impedance to the 6 � setting (see Switching the speaker impedance to do this). � Set the crossover frequency to 200 Hz (see Crossover network to do this).
� Center speaker x 1
After connecting the speakers, please complete Using the Quick Setup with the 5.1ch setting (refer to the receiver�s 5 minute guide in the supplied Operating Instructions).
� Surround speakers x 2
Connecting the speakers
To get the best out of your speakers it is important that you connect them properly to your amplifier or receiver. Each speaker connection consists of a positive (+) and a negative (�) terminal. These should be matched between the amplifier and the speaker.
� Speaker cables x 5
Important
Front left (White) Center (Green)
Front right (Red)
� Make sure all equipment is turned off before making any connections.
1
Surround right (Grey) Surround left (Blue)
Twist and pull off the protective shields on each speaker wire.
� Non-skid pads 2 Attach one end of the supplied speaker cables to the rear of each speaker. Match the colored wire with the color-coded label (above the tabs), then insert the colored wire into the red (+) tab and the other wire with the black (�) tab.
black red Colored marker
� These operating instructions
Before you start
Thank you for buying this Pioneer product. Please read through these operating instructions before installing and using your speaker system. Important In order to prevent damage to the speaker system resulting from input overload, please observe the following precautions: � Do not supply signal to the speaker system in excess of the maximum permissible input. � When connecting or disconnecting cables, make sure that your amplifier is switched off. � Do not use excessive amplifier volume if using a tone control to emphasize high or low frequencies. Caution � Do not connect the supplied speakers to any amplifier other than the one supplied with this system. Connection to any other amplifier may result in malfunction or fire. � Pioneer will not be responsible for any accidents or damage that may result from improper installation.
