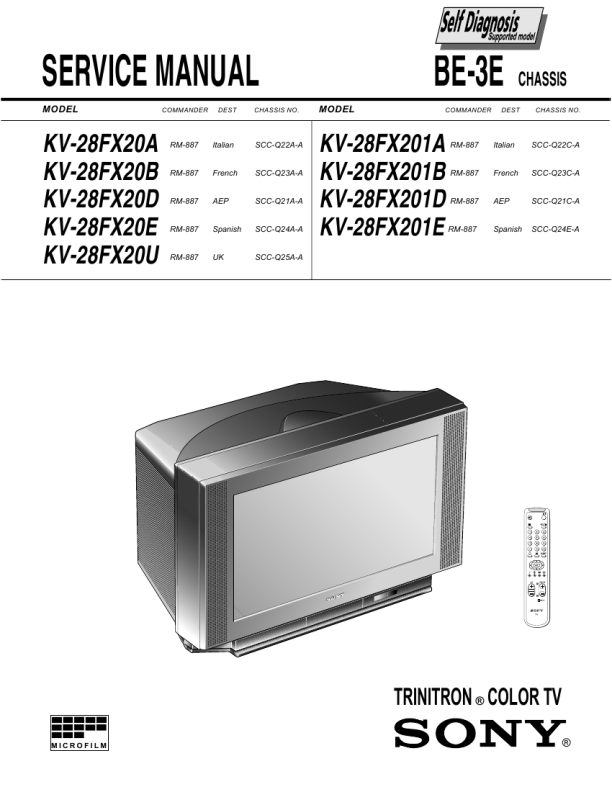

SONY KV28FX20A
Manual de Servicio

SECTION 1 GENERAL
Overview Quick Start Guide

The operating instructions mentioned here are partial abstracts from the Operating Manual. The page numbers of the Operating Instruction Manual remain as in the manual.

Overview of the remote control buttons
To mute sound Press to mute TV sound. Press again to restore the sound. To reveal on screen information Press to reveal all on-screen indications. Press again to cancel. To select channels Press the numbered buttons to select channels. For double digit programme numbers, e.g.23, press -/-- first, then the buttons 2 and 3. If you enter an incorrect first digit, this should be corrected by entering another digit (0 - 9) and then selecting -/-- button again to enter the programme number of your choice. To return to TV mode To temporarily switch off TV Press to temporarily switch off TV. Press again to switch on TV from standby mode. To save energy we recommend switching off completely when TV is not in use. NOTE: After 15 -30 minutes without a TV signal and without any button being pressed, the TV switches automatically into standby mode. To select input signal or freeze teletext Press to select inputs from the TV sockets (see Using Optional Equipment section). In teletext mode, press to freeze the displayed page. Press once again to cancel. To return to previous channel Press to return to the previous channel you were watching. Note: This can be done only after watching the present channel for 5 seconds To display the menu Press if you wish to use the TV menu system. Press again to remove the menu from the TV screen. To select menu items Use the OK button and arrow keys to select the options available in the menu system of this TV. To change screen format Press to change the size of the screen. This button has no function To select channels Press to select channels.

6. Automatically tuning the TV
When you first switch on the TV, the following sequence of menu screens appear on the TV enabling you to 1) choose a language for the TV menu screens, 2) add channels to the TV, 3) arrange the channels. 1 When switching on the TV for the first time, the �LANGUAGE� menu appears automatically on the TV screen enabling you to select in which language you wish to read the TV menu screens. Press the UP and DOWN arrow keys on the remote control to select your language then press the OK button to confirm your selection.
LANGUAGE English Deutsch Français Italiano Nederlands Polski� �esky Magyar Eλλnν kά

2 The �AUTO TUNE� menu appears on the TV screen in your selected language. Press the UP and DOWN arrow keys to select �YES� then press the OK button to confirm.

Do you want to start automatic tuning? Yes No Confirm: OK

3 A new menu appears asking you to check that the antenna is connected. Ensure that the antenna is connected then press the OK button to confirm. The TV now starts to automatically search and store all available channels for you. Please be patient and do not press any buttons.

Please confirm that antenna is connected Confirm: OK

10
8

Press to return to the normal operation from teletext mode or standby mode. To select teletext Press to switch on Teletext. To display sound menu Press to change the sound settings. Press again to remove the display. To display picture menu Press to change the picture settings. Press again to remove the display. To adjust TV volume Press to adjust the volume of the TV.

AUTO PROGRAMME PROG 6 SYS B/G CHAN C26 LABEL -----

AUTO PROGRAMME

4 When the TV has finished tuning in all available channels, the �PROGRAMME SORTING� menu appears on the TV screen which enables you to change the channel order on your TV. If you wish to change the order of any of the TV channels, press the PROGR+/button on your remote control until the channel you wish to rearrange appears on the screen. Press the UP or DOWN arrow keys to select the new programme number position for your selected channel. Press the OK button to confirm. Repeat this procedure if you wish to change the order of other channels on your TV.

PROGRAMME SORTING PROG 0 1 2 3 4 SYS B/G B/G B/G B/G B/G CHAN C28 C29 C35 C38 C40 C42 C55 C56 C57 LABEL BBC-W VHS-2 CNN- ----MV-CH VHS-1 ----8MM -----

5 B/G 6 B/G 7 B/G B/G 8 9 B/G Select: OK

C58 ----Exit: MENU

PROGRAMME SORTING PROG 0 1 2 3 4 5 6 7 8 9 SYS B/G B/G B/G B/G B/G B/G B/G B/G B/G B/G CHAN C28 C29 C35 C38 C40 C42 C55 C56 C57 C58 LABEL BBC-W VHS-2 CNN- ----MV-CH VHS-1 ----8MM --------Confirm: OK

5 Press the MENU button to remove the menu from the TV screen.

Select Position: 4$

6 Press the PROGR+/- or the numbered buttons on the remote control to view the TV channels.

6
