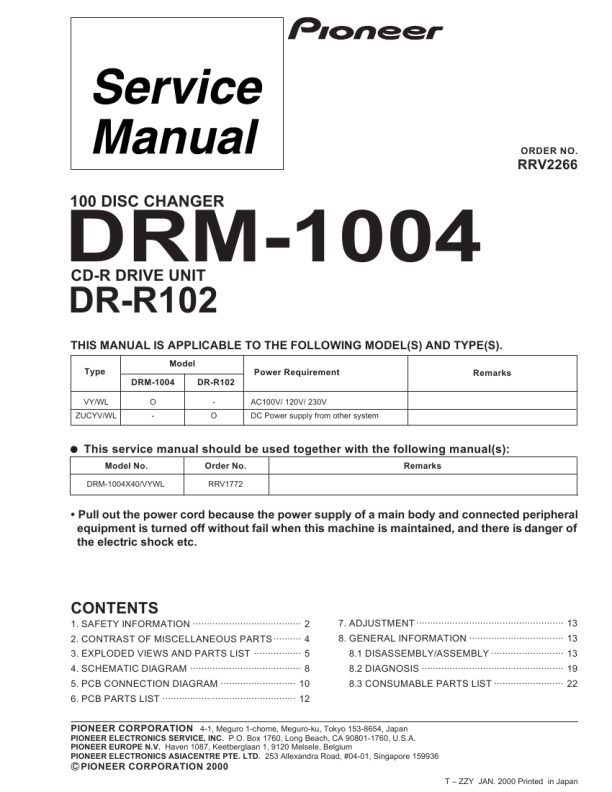

DR-R102/ZUCYV/WL Manual de Servicio
0 artículo(s) en Su carrito
Opiniones de los clientes
No hay comentarios de productos.
TEXT_PDF_SNIPPET
DRM-1004, DR-R102
� Connections
Personal Computer (DOS/V Machine)
SCSI Cable Set the SCSI ID to "0".
+5V and +12V
DC Power Supply
CD-R DRIVE UNIT (DR-R102)
� Preparations
� Set the SCSI ID to "0". � Turn on the power to the drive, insert the destination disc in clamp-up state, manually clamp the disc and short-circuit the changer interface connector (CN502: pins 4 and 5). When stopping, reverse this procedure.
WIFB BOARD ASSY
Short-circuit
CN502
5
GND
4
XCLAMP
Rear
Note: Be sure to execute the diagnostic program always in DOS mode. The DOS window of Windows is unstable with the diagnostic program.
Test 1: Checking the playback performance of a pressed disc (Test item: CDT-304)
� Disc to use Test disc CDT-304 � Test contents Test Items
Number of C1 errors at the inner and outer peripheries Full-stroke seek time Random read time Transfer rate
Standard Values
Less than 22/second (The number of C2 errors is regarded as a reference.) 300 ms or less 210 ms or less 2700 Kbytes/s or more
� Check method Select "CDT-304" and execute it by pressing the "Space" key (takes approx. 1 minute). If all the items are within the standard value range, "OK" is displayed. (If any are out of the standard value range, "NG" will be displayed, and a warning will sound. Press the "Escape" key to cancel.)
