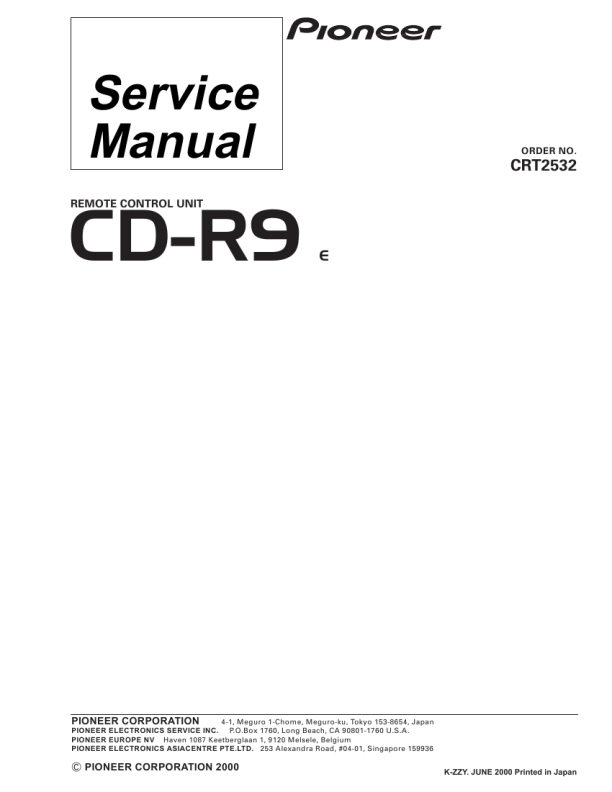

PIONEER CD-R9/E
Manual de Servicio

CD-R9

EXPLODED VIEWS AND PARTS LIST
PACKING
8 4 1 3 5

2

9

7 6

NOTE:
- Parts marked by �*�are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to � mark on the product are used for disassembly.

- PACKING SECTION PARTS LIST
Mark No. Description * 1 Accessory Assy 2 Polyethylene Bag 3 Battery 4 Sheet 5 Holder Part No. CEA2398 CEG1011 CEX1021 CNM5288 CNS4502 Mark No. 6 7 8 9 Description Carton Contain Box Part No. CHG4115 CHL4115 Remote Control Main Assy CPN1692 Sensor Assy CXB5928

EXTERIOR

- EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. 1 Remote Control Main Assy CPN1692 2 Case CNS6050
