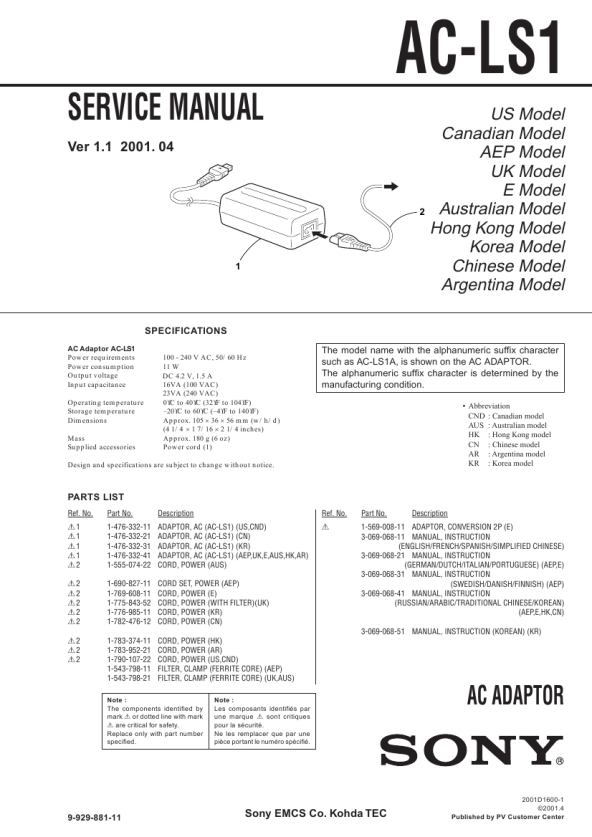

AC-LS1
SERVICE MANUAL
Ver 1.1 2001. 04
1
US Model Canadian Model AEP Model UK Model E Model 2 Australian Model Hong Kong Model Korea Model Chinese Model Argentina Model
SPECIFICATIONS
AC Adaptor AC-LS1 Power requirements Power consumption Output voltage Input capacitance Operating temperature Storage temperature Dimensions Mass Supplied accessories 100 - 240 V AC, 50/60 Hz 11 W DC 4.2 V, 1.5 A 16VA (100 VAC) 23VA (240 VAC) 0°C to 40°C (32°F to 104°F) �20°C to 60°C (�4°F to 140°F) Approx. 105 � 36 � 56 mm (w/h/d) (4 1/4 � 1 7/16 � 2 1/4 inches) Approx. 180 g (6 oz) Power cord (1)
The model name with the alphanumeric suffix character such as AC-LS1A, is shown on the AC ADAPTOR. The alphanumeric suffix character is determined by the manufacturing condition.
� Abbreviation CND : Canadian model AUS : Australian model HK : Hong Kong model CN AR KR : Chinese model : Argentina model : Korea model
Design and specifications are subject to change without notice.
PARTS LIST
Ref. No. 01 01 01 01 02 02 02 02 02 02 02 02 02 Part No. 1-476-332-11 1-476-332-21 1-476-332-31 1-476-332-41 1-555-074-22 1-690-827-11 1-769-608-11 1-775-843-52 1-776-985-11 1-782-476-12 1-783-374-11 1-783-952-21 1-790-107-22 1-543-798-11 1-543-798-21 Description ADAPTOR, AC (AC-LS1) (US,CND) ADAPTOR, AC (AC-LS1) (CN) ADAPTOR, AC (AC-LS1) (KR) ADAPTOR, AC (AC-LS1) (AEP,UK,E,AUS,HK,AR) CORD, POWER (AUS) CORD SET, POWER (AEP) CORD, POWER (E) CORD, POWER (WITH FILTER)(UK) CORD, POWER (KR) CORD, POWER (CN) CORD, POWER (HK) CORD, POWER (AR) CORD, POWER (US,CND) FILTER, CLAMP (FERRITE CORE) (AEP) FILTER, CLAMP (FERRITE CORE) (UK,AUS)
Note : Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.
Ref. No. 0
Part No.
Description
1-569-008-11 ADAPTOR, CONVERSION 2P (E) 3-069-068-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/SPANISH/SIMPLIFIED CHINESE) 3-069-068-21 MANUAL, INSTRUCTION (GERMAN/DUTCH/ITALIAN/PORTUGUESE) (AEP,E) 3-069-068-31 MANUAL, INSTRUCTION (SWEDISH/DANISH/FINNISH) (AEP) 3-069-068-41 MANUAL, INSTRUCTION (RUSSIAN/ARABIC/TRADITIONAL CHINESE/KOREAN) (AEP,E,HK,CN) 3-069-068-51 MANUAL, INSTRUCTION (KOREAN) (KR)
Note : The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.
AC ADAPTOR
9-929-881-11
Sony EMCS Co. Kohda TEC
2001D1600-1 ©2001.4 Published by PV Customer Center
|
|
|
> |
|
