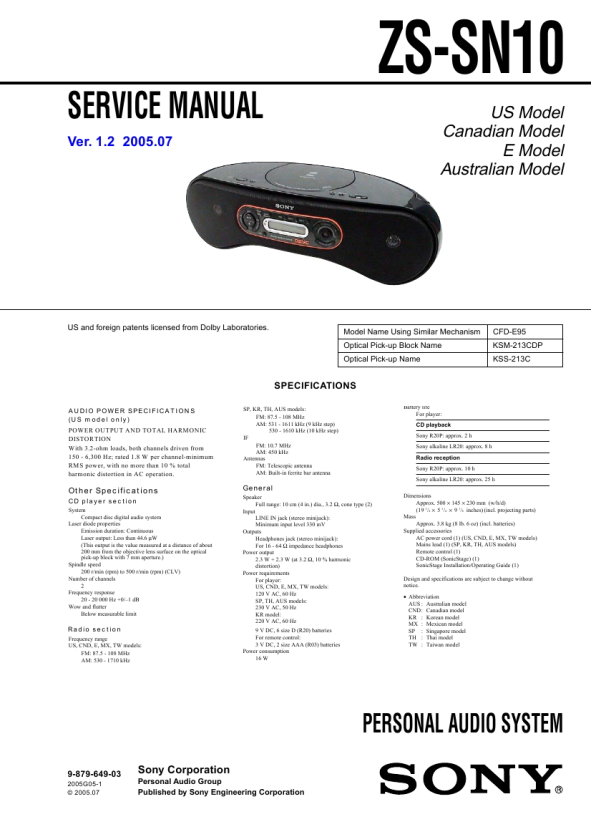

SONY ZSSN10
Manual de Servicio

ZS-SN10 SECTION 2 GENERAL
Basic Operations

This section is extracted from instruction manual.

Playing a CD

3

1, 2

3

Press u (N on the remote) (direct power-on). The player plays all the tracks once.
Display Audio CD ATRAC CD/MP3 CD*

Track number

Playing time File number

File name Playing time

* When playing an MP3 CD, �MP3� appears in the display. Note Before playing an ATRAC CD/MP3 CD, this player With the label side up reads all file and group information on the CD. Depending on the file structure, it may take more than a minute to read them. During this time, �Reading� is displayed.

Use these buttons for additional operations
POWER u x VOLUME �, + �, +

Connect the supplied AC power cord.

1

Press PUSH Z OPEN/CLOSE to open the CD lid and place the CD on the CD tray.

i >

2

Press PUSH Z OPEN/CLOSE to close the CD lid.
Tips � To listen through headphones, connect the headphones to the i (headphones) jack. � Playback starts from the track you last stopped playing (Resume play). To cancel the resume play to start play from the beginning of the first track, press x in stop mode. To adjust the volume stop playback pause playback Press

.

VOLUME +* 1, � (VOL +* 1, � on the remote) x u*1 (X on the remote) Press the button again to resume play after pause. > .

go to the next track go back to the previous track

*1 The button has a tactile dot.

To select a group*2 remove the CD turn on/off the player
2

Press + to go forward and � to go backward PUSH Z OPEN/CLOSE*3 POWER

Notes on ATRAC CDs � Maximum number of groups: 255 Maximum number of files: 999 � CD-Rs/CD-RWs recorded in the ATRAC3plus format cannot be played on your computer. Notes on MP3 CDs � Maximum number of groups: 255 Maximum number of files: 511 Maximum directory level: 8 � A group that does not include an MP3 file is skipped. � Be sure to add the file extension �mp3� to the file name. However, if you add the file extension �mp3� to a file other than an MP3 file, the player will not be able to recognize the file properly. � This player can play bit rates of 32 to 320 kbps, and sampling frequencies of 32/44.1/ 48 kHz. � To compress a source in an MP3 file, we recommend setting the compression parameters to �44.1 kHz,� �128 kbps,� and �Constant Bit Rate.� � To record up to the maximum capacity, set the writing software to �halting of writing.� � To record to the maximum capacity at one time up on media that has nothing recorded on it, set the writing software to �Disc at Once.�

* This function works for ATRAC CDs/MP3 CDs only. 3 * Once you open the CD lid, the track to start play will change to the beginning of the first track.

The structure of ATRAC CDs/MP3 CDs ATRAC CDs/MP3 CDs consist of �files� and �groups.� A
Notes � If ATRAC3plus files and MP3 files are recorded on the same CD, this CD player plays the ATRAC3plus first. � The playback capability of this CD player may vary depending on the quality of the disc and the condition of the recording device. � Characters that can be displayed on this CD player are listed below. � A to Z � a to z � 0 to 9 �! " # $ % & ' ( ) * + , - . / : ;<=>?@[\]^_`{|} ~ If you use other characters on your computer using software such as SonicStage, they are displayed as ��� on this CD player. � On a disc that has ATRAC3plus/MP3 files, do not save files in other formats and do not make unneccessary groups.

�file� is equivalent to a �track� of an audio CD. A �group� is a bundle of files and is equivalent to an �album.� For MP3 CDs, this CD player recognizes an MP3 folder as a �group� so that ATRAC CDs and MP3 CDs can be operated in the same way. In this manual, we use the word �track� in description of the operations available for both ATRAC CDs/MP3 CDs and audio CDs, and the word �file� for the operations available for ATRAC CDs/MP3 CDs only. Playing order of ATRAC CDs and MP3 CDs For ATRAC CDs, files are played in the order selected in SonicStage. For MP3 CDs, the playing order may differ depending on the method used to record MP3 files on the disc. In the following example, files are played in order of 1 to 7.
Group File ATRAC CD MP3 CD
