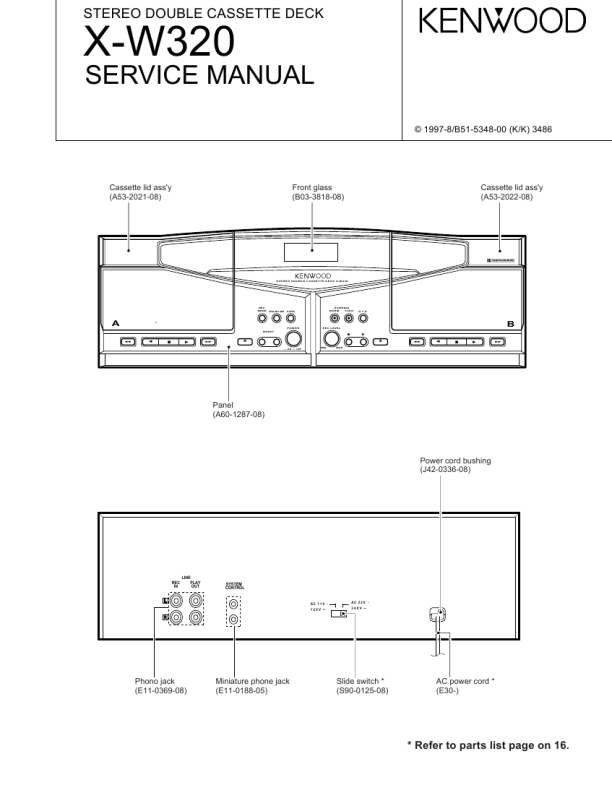

X-W320
CIRCUIT DESCRIPTION
2. Initialize
When the mechanism made an irregular action, follow the chart below for initializing. Commence initializing
Switch ON MTR (Wait for 1 sec.)
Switch ON "PLAY" SW Yes Switch ON SOL (50 msec.)
No
Wait for 1 sec.
Yes
Switch ON "PLAY" SW No Switch OFF MTR
Complete initializing
3. Test mode
3-1 Setting method While pressing the STOP key (A DECK), turn the power switch ON. After turned the power ON, all lights are illuminated for 1.5 seconds and return to normal display with T indication. 3-2 Cancellation Turn the power switch OFF. 3-3 Contents of the test mode 1) (4 / 8 / 12) seconds recording.
KEYS DECK B STOP 7 + DECK B REC ¶ DECK B STOP 7 + DECK B PAUSE 8 DECK B STOP 7 + DOLBY NR T(SECONDS) 4 8 12 T(SEC)
