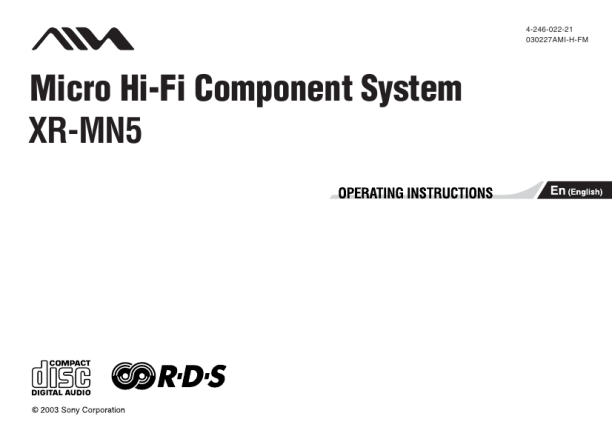

AIWA XRMN5
Manual de Usuario

ADJUSTMENTS BEFORE OPERATION
POWER 6STANDBY/ON ECO/RDS f,g ECD, TUNER/ BAND, dTAPE, AUX SHIFT DIMMER ECD, POWER TUNER/ BAND, dTAPE, CLOCK AUX ENTER f,g

Setting the clock

1 In stop mode, hold down SHIFT and press CLOCK on the remote.
Go to step 3 when the hour of the clock display flashes.

2 Within 6 seconds, press ENTER.
The hour flashes in the display.

En

3 Press f or g to set the hour, then press ENTER. 4 Press f or g to set the minute.
Each press changes the time in 1-minute steps.

5 Press ENTER.
The time display stops flashing and the clock starts from 00 seconds. To display the time while the power is on Hold down SHIFT and press CLOCK on the remote. The time will be displayed for 6 seconds. If "- -:- -" appears when the unit is turned off There has been a power interruption. Reset the clock.

Power

Turning the unit on Press POWER 6STANDBY/ON (POWER on the remote ). Alternatively, press dTAPE, TUNER/BAND, AUX, ECD or one of the CD slot buttons (1-5). Playback will start automatically if a disc or tape is loaded. Turning the unit off Press POWER 6STANDBY/ON again. The unit goes into standby.

ECO mode

Reduces power consumption in standby mode with the following operations.
Press ECO/RDS. Each press of the button changes the mode as follows;
ECO ON: Power economizing mode is activated. When the unit turns off, everything on the display clears and only the red indicator above POWER lights to show that the power is being supplied. ECO OFF: Power economizing mode is cancelled. When the unit turns off, the clock display appears. Initial mode is ECO OFF. Standby power consumption ECO ON: 0.26 W ECO OFF: 15 W

Dimmer
The display window brightness can be selected.
Press DIMMER on the remote. Each press of the button changes between darker and brighter.

8
