Inicio >> AIWA >> VXT149 Manual de Servicio

 43 artículo(s) en Su carrito

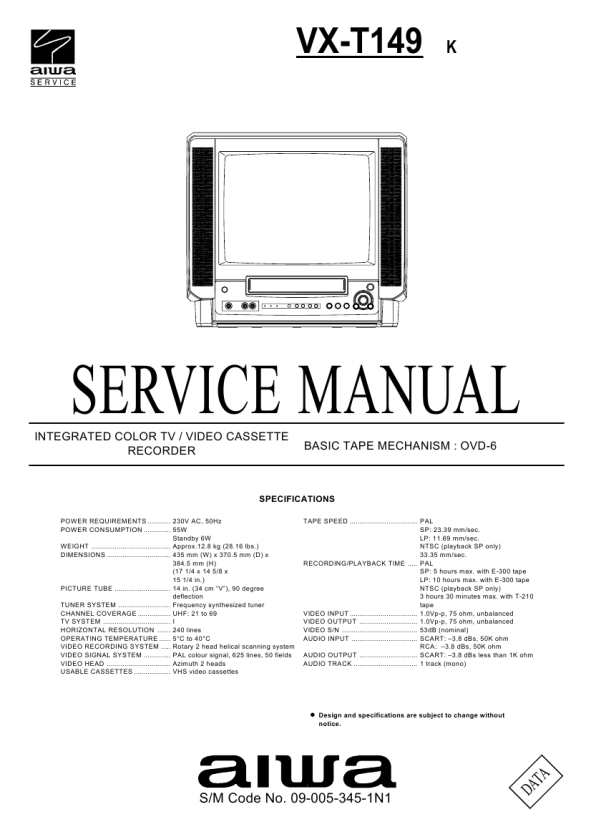

AIWA VXT149
Manual de Servicio


¡Twitee acerca de este producto y obtenga $1.00 de crédito en la tienda para uso!
  • Contiene diagramas del circuito
  • Descargable
  • Formato PDF
  • Manual completo
  • Idiomas: English
Precio: $4.99

Descripción del AIWA VXT149 Manual de Servicio

Manual de servicio completo en formato digital (archivo PDF). Los manuales de servicio por lo general contienen diagramas de circuitos, tarjetas de circuitos impresos, consejos para reparación, diagramas de cableado, diagramas de bloque y lista de refacciones. El Manual de Servicio (a veces llamado Manual de Reparación) es usado principalmente por los técnicos.

Si tan solo quiere saber cómo utilizar su televisión, reproductor de vídeo, reproductor de mp3, etc. Quizá lo que necesita es el Manual del Propietario. Después de colocar la orden le enviaremos las instrucciones de descarga a su dirección de e-mail.

The manual is available in languages: English

Not yet ready
You must purchase it first

Opiniones de los clientes
No hay comentarios de productos.

TEXT_PDF_SNIPPET
ELECTRICAL ADJUSTMENTS
(TV SECTION)
2-4: CONSTANT VOLTAGE 1. Connect the digital voltmeter to TP401. 2. Set condition is AV MODE without signal. 3. Adjust the VR502 until the DC voltage is 135 ± 0.5V. 2-5: CUT OFF 1. Place the set with Aging Test for more than 15 minutes. 2. Set condition is AV MODE without signal. 3. Using the remote control, set the brightness and contrast to normal position. 4. Activate the adjustment mode display of Fig. 1-1 and press the channel button (5) on the remote control to select "OTHERS". The Fig. 2-2 appears on the display. 5. Press the channel button (5) on the remote control to select "CUT OFF". 6. Adjust the Screen Volume until a dim raster is obtained. 2-6: WHITE BALANCE NOTE: Adjust after performing CUT OFF adjustment. 1. Place the set with Aging Test for more than 15 minutes. 2. Receive the white 100% signal from the Pattern Generator. 3. Using the remote control, set the brightness and contrast to normal position. 4. Activate the adjustment mode display of Fig. 1-1 and press the channel button (2) on the remote control to select "AKB". The Fig. 2-3 appears on the display. Press the channel button (2) on the remote control to select the "R.BIAS". Using the PLAY or STOP button on the remote control, adjust the R.BIAS. Press the CH. UP/DOWN button on the remote control to select the "G.BIAS", "B.BIAS", "R.DRIVE", "G.DRIVE" or "B.DRIVE". Using the PLAY or STOP button on the remote control, adjust the G.BIAS, B.BIAS, R.DRIVE, G.DRIVE or B.DRIVE. Perform the above adjustments 7 and 8 until the white color is looked like a white. 1. AKB AUTO 2. R.BIAS 3. G.BIAS 4. B.BIAS 5. R.DRIVE 6. G.DRIVE 7. B.DRIVE 8. AGC AUTO 2-8: HORIZONTAL PHASE 1. Receive the center cross signal from the Pattern Generator. 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 1-1 and press the channel button (1) on the remote control to select "H/V". The Fig. 2-4 appears on the display. 4. Press the channel button (1) on the remote control to select "H. PHASE". 5. Press the PLAY or STOP button on the remote control until the vertical line becomes fit to the notch of the shadow mask. 1. H. PHASE 2. H. BLK 3. V. SIZE 50/60 4. V. POSI 50/60 5. V. LIN 50/60 6. V. SC 50/60 7. V. COMP 8. (H FREQ)

0. RETURN

"The adjustment item 8 is not used for this model." Fig. 2-4 2-9: VERTICAL SIZE NOTE: Adjust after performing adjustments in section 2-8. 1. Receive the cross hatch signal from the Pattern Generator. 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 1-1 and press the channel button (1) on the remote control to select "H/V". The Fig. 2-4 appears on the display. 4. Press the channel button (3) on the remote control to select "V. SIZE 50/60". 5. Press the PLAY or STOP button on the remote control until the rectangle on the center of the screen becomes square. 6. Receive a broadcast and check if the picture is normal. 7. Receive the cross hatch signal of NTSC. (Audio Video Input) 8. Press the AV button on the remote control to set to the AV mode. Then perform the above adjustments 2~5. 2-10: VERTICAL LINEARITY NOTE: Adjust after performing adjustments in section 2-9.

5. 6. 7.

8.

9.

0. RETURN

"The adjustment items 1 and 8 are not used for this model." Fig. 2-3 2-7: FOCUS 1. Receive a broadcast. 2. Turn the Focus Volume fully counterclockwise once. 3. Adjust the Focus Volume until picture is distinct.

1. Receive the cross hatch signal from the Pattern Generator. 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 1-1 and press the channel button (1) on the remote control to select "H/V". The Fig. 2-4 appears on the display. 4. Press the channel button (5) on the remote control to select "V. LIN 50/60". 5. Press the PLAY or STOP button on the remote control until the SHIFT quantity of the OVER SCAN on upside and downside becomes minimum. 6. Receive the cross hatch signal of NTSC. (Audio Video Input) 7. Press the AV button on the remote control to set to the AV mode. Then perform the above adjustments 2~5.

D2-2
