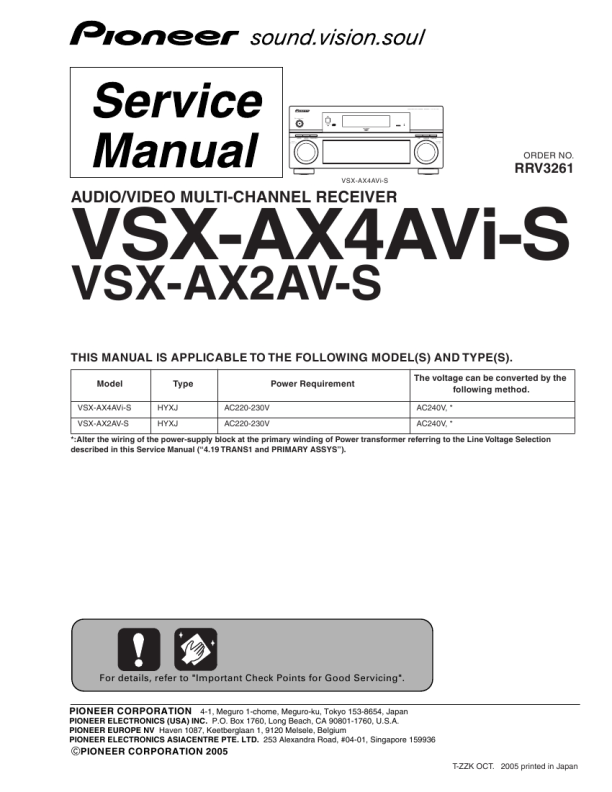

PIONEER VSX-AX4AVI-S/HYXJ5
Manual de Servicio

5

6

7

8

A M
IC152 (pins 2, 5) DDC_RX1

Q
IC101 (pins 58, 59, 62, 63, 66, 67, 70, 71) TMDS_RX2
A

Are signals detected?

No

Check the soldering of CN101. If soldering has not been done correctly, replace CN101.

Do signals (approx. 0.5 Vp-p) run in all the lines?

No

Check the soldering of CN102. If soldering has not been done correctly, replace CN102.

M

Yes

IC152 (pins 3, 6) Are signals the same as those at Pins 2 and 5 detected ? N Yes Q153 (pins 1, 4) Are signals the same as those at Pins No 6 and 3 but whose voltage has been converted from 5V to 3V detected? Yes

R

Yes DDC_RX2 No Check the soldering of CN102. If soldering has not been done correctly, replace CN102.
B

IC172 (pins 2, 5) No Check the soldering of IC152. If soldering has not been done correctly, replace IC152.

Are signals detected?

R

Yes

IC172 (pins 3, 6) Are signals the same as those at Pins 2 and 5 detected ? Check the soldering of IC172. If soldering has not been done correctly, replace IC172.
C

Check the soldering of Q153. If soldering has not been done correctly, replace Q153.

No

S

Yes

O
IC161 (pins 2, 15) Are signals the same as those at Pins 3 and 13 detected immediately after the power is turned on? Yes IC151 (pin 8) No Check the soldering of D151. If soldering has not been done correctly, replace D151.

Q173 (pins 1, 4) Are signals the same as those at Pins 6 and 3 but whose voltage has been converted from 5V to 3V detected? Yes

No

No Check the soldering of IC161. If soldering has not been done correctly, replace IC161.

Check the soldering of Q173. If soldering has not been done correctly, replace Q173.

P

O
IC161 (pins 4, 11)
D

Is the voltage about 5V? Yes

Are signals the same as those at Pins 3 and 13 detected immediately after the power is turned on?

No Check the soldering of IC161. If soldering has not been done correctly, replace IC161.

Check the soldering of IC151. If soldering has not been done correctly, replace IC151.

T

Yes IC171 (pin 8)

Is the voltage about 5V? Yes Replace IC171

No

Check the soldering of D171. If soldering has not been done correctly, replace D171.

E

F

VSX-AX4AVi-S
