SONY VCLM3358
Manual de Servicio

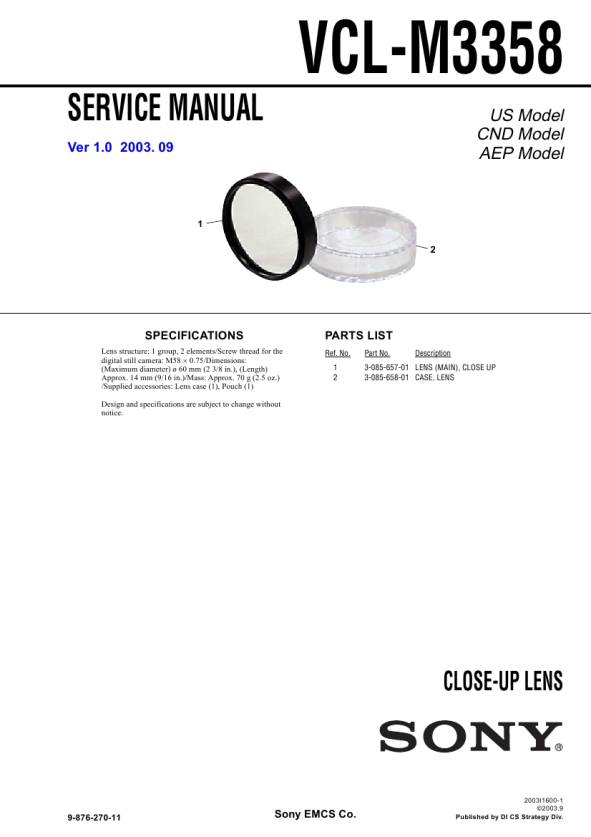

VCL-M3358
SERVICE MANUAL
Ver 1.0 2003. 09

US Model CND Model AEP Model

1 2

SPECIFICATIONS
Lens structure: 1 group, 2 elements/Screw thread for the digital still camera: M58 � 0.75/Dimensions: (Maximum diameter) ø 60 mm (2 3/8 in.), (Length) Approx. 14 mm (9/16 in.)/Mass: Approx. 70 g (2.5 oz.) /Supplied accessories: Lens case (1), Pouch (1) Design and specifications are subject to change without notice.

PARTS LIST
Ref. No. 1 2 Part No. Description 3-085-657-01 LENS (MAIN), CLOSE UP 3-085-658-01 CASE, LENS

CLOSE-UP LENS

9-876-270-11

Sony EMCS Co.

2003I1600-1 ©2003.9 Published by DI CS Strategy Div.
