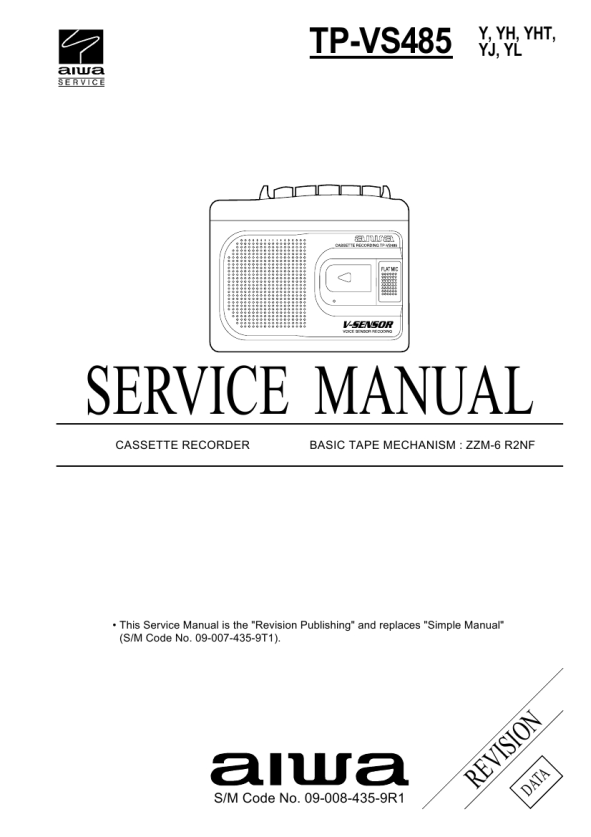

AIWA TP-VS485YH
Manual de Servicio

TRANSISTOR ILLUSTRATION

C

G

B E

S D

2SC3326 2SC4116 RN1304 RN1307 RN1310

2SJ106

ADJUSTMENT
1. Tape Speed Adjustment Settings: � Test tape: TTA�100 (Tape center) � Test point: Phones Jack (J102) � Adjustment location: SFR301 � PAUSE: OFF � VOLUME: Maximum � TAPE SPEED: Normal (Speed volume center) Method: Play back the test tape and adjust SFR301 for 3000Hz ± 10Hz. 2. Azimuth Adjustment Settings: � Test tape: TTA�330 � Test point: Phones Jack (J102) � Adjustment location: Head azimuth adjustment screw � PAUSE: OFF � VOLUME: Maximum � TAPE SPEED: Center Method: Play back the test tape and adjust screw so that the output become maximum.

�4�
