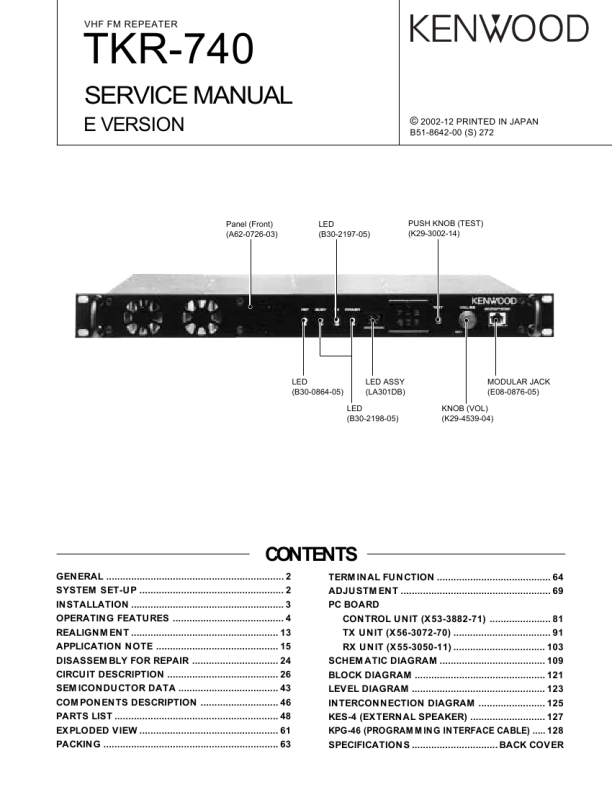

TKR-740
DISASSEMBLY FOR REPAIR
Cooling Fan installation for the TKR-740(E)
1. Cooling Fan (Front side)
(1) Secure the fan to the fan enclosure with the 2 supplied screws. (3) Guide the fan cable along with the front of the chassis and through the cable slot. (4) Hook the fan cable around the cable holder, then plug the connector into the CN104 on the TX unit (A/3).
Fan enclosure
Cooling fan
CN104
Cable holder
TX UNIT (A/3) CN104
(2) Attach the fan enclosure to the front of the TKR-740(E) heatsink so that the enclosure tabs are securely mounted to the heatsink chassis.
