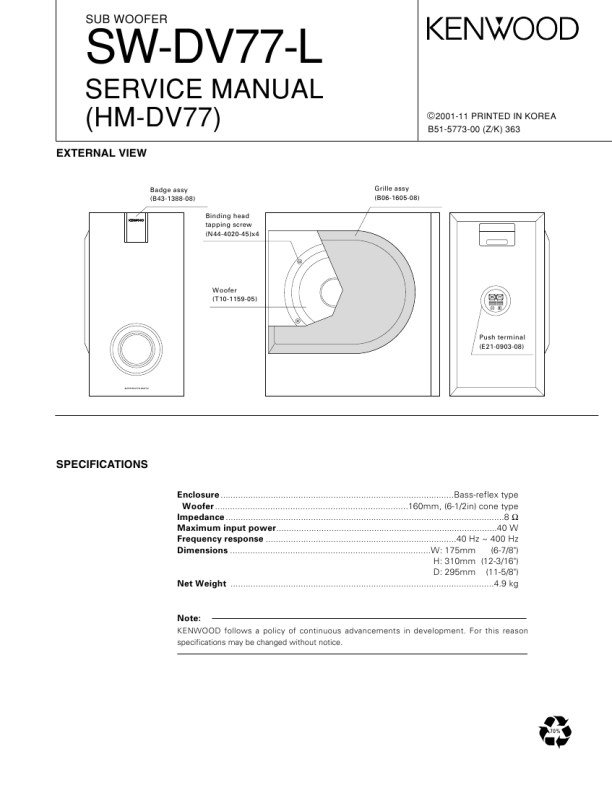

KENWOOD SWDV77L
Manual de Servicio

SUB WOOFER

SW-DV77-L
SERVICE MANUAL (HM-DV77)
EXTERNAL VIEW
Badge assy (B43-1388-08) Binding head tapping screw (N44-4020-45)x4 Grille assy (B06-1605-08)

2001-11 PRINTED IN KOREA
B51-5773-00 (Z/K) 363

Woofer (T10-1159-05)

Push terminal (E21-0903-08)

SPECIFICATIONS
Enclosure .............................................................................................Bass-reflex type Woofer .............................................................................160mm, (6-1/2in) cone type Impedance ...............................................................................................................8 � Maximum input power........................................................................................40 W Frequency response ............................................................................40 Hz ~ 400 Hz Dimensions ................................................................................W: 175mm (6-7/8") H: 310mm (12-3/16") D: 295mm (11-5/8") Net Weight .........................................................................................................4.9 kg

Note:
KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.

70%
