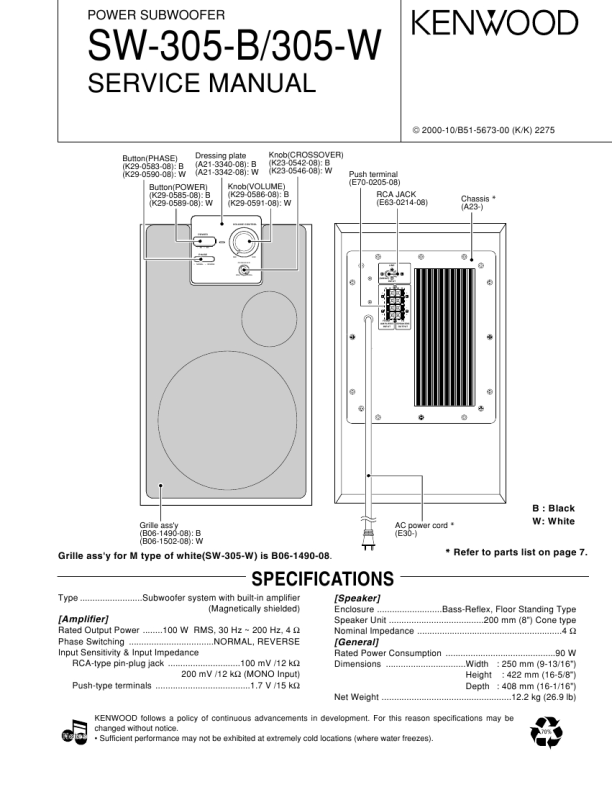

KENWOOD SW305B
Manual de Servicio

POWER SUBWOOFER

SW-305-B/305-W
SERVICE MANUAL
© 2000-10/B51-5673-00 (K/K) 2275
Button(PHASE) (K29-0583-08): B (K29-0590-08): W Dressing plate (A21-3340-08): B (A21-3342-08): W Knob(CROSSOVER) (K23-0542-08): B (K23-0546-08): W Push terminal (E70-0205-08) Knob(VOLUME) (K29-0586-08): B RCA JACK (K29-0591-08): W (E63-0214-08)

Button(POWER) (K29-0585-08): B (K29-0589-08): W

Chassis * (A23-)

VOLUME CONTROL

POWER

-

ON

�

OFF

PHASE
MIN MAX

�

NORMAL

-

REVERSE

CROSSOVER

LINE
R L

60Hz

200Hz

(MONO) INPUT

+ R L R

+ R L R +

+

FROM AMPLIFIER INPUT

TO SPEAKERS OUTPUT

Grille ass'y (B06-1490-08): B (B06-1502-08): W

AC power cord * (E30-)

B : Black W: White

Grille ass'y for M type of white(SW-305-W) is B06-1490-08.

* Refer to parts list on page 7.

SPECIFICATIONS
Type .........................Subwoofer system with built-in amplifier (Magnetically shielded)

[Speaker]
Enclosure ..........................Bass-Reflex, Floor Standing Type Speaker Unit ......................................200 mm (8") Cone type Nominal Impedance ..........................................................4 �

[Amplifier]
Rated Output Power ........100 W RMS, 30 Hz ~ 200 Hz, 4 � Phase Switching ..................................NORMAL, REVERSE Input Sensitivity & Input Impedance RCA-type pin-plug jack .............................100 mV /12 k� 200 mV /12 k� (MONO Input) Push-type terminals ......................................1.7 V /15 k�

[General]
Rated Power Consumption ............................................90 W Dimensions ................................Width : 250 mm (9-13/16") Height : 422 mm (16-5/8") Depth : 408 mm (16-1/16") Net Weight ....................................................12.2 kg (26.9 lb)

KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice. Notes � Sufficient performance may not be exhibited at extremely cold locations (where water freezes).
