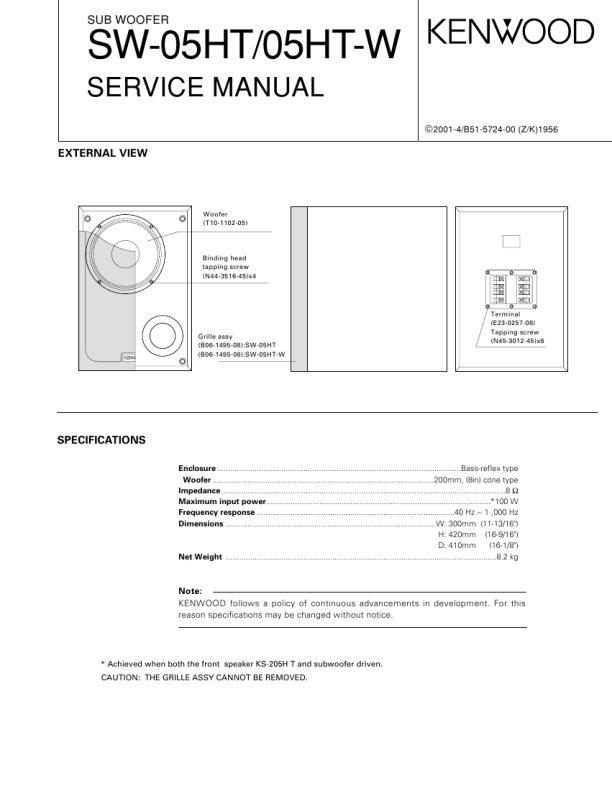

KENWOOD SW05HTW
Manual de Servicio

SUB WOOFER

SW-05HT/05HT-W
SERVICE MANUAL
2001-4/B51-5724-00 (Z/K)1956 EXTERNAL VIEW

Woofer (T10-1102-05)

Binding head tapping screw (N44-3516-45)x4

Grille assy (B06-1495-08):SW-05HT (B06-1495-08):SW-05HT-W

Terminal (E23-0257-08) Tapping screw (N45-3012-45)x6

SPECIFICATIONS
Enclosure ..............................................................................................................Bass-reflex type Woofer ....................................................................................................200mm, (8in) cone type Impedance ................................................................................................................................8 � Maximum input power.....................................................................................................*100 W Frequency response .........................................................................................40 Hz ~ 1 ,000 Hz Dimensions ...............................................................................................W: 300mm (11-13/16") H: 420mm (16-9/16") D: 410mm (16-1/8") Net Weight ..........................................................................................................................8.2 kg

Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.

* Achieved when both the front speaker KS-205H T and subwoofer driven. CAUTION: THE GRILLE ASSY CANNOT BE REMOVED.
