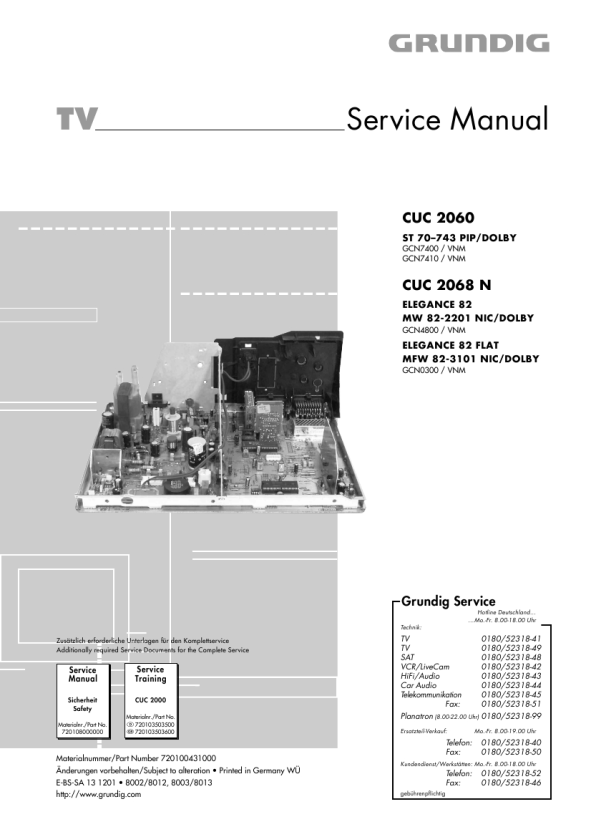

GRUNDIG ST 70-743 PIP/DOLB
Manual de Servicio

Allgemeiner Teil / General Section

CUC 2060 / 2068 N

SETTINGS ____________________________________________________________________________________
Picture settings
Setting brightness, colour, contrast, definition and tint
1 Call up the » Picuture« menu with »z«.
� The » Picuture« menu appears.
Brightness Color Contrast Sharpness
sssssssss� sssssss� sssssss� sssssss�

_____ �� ���� _____ _____ ���� ����n
TXT

2 Select the line »Brightness«, »Color«, »Contrast«, »Sharpness« or »Tint« with
»P+« or »P-« and set the value desired with » « or » «. (With transmissions in NTSC standard, »Tint« will appear in addition in the picture menu and can be adjusted.) Note: The set has been tested with maximum contrast in order to control the reliability of all modules. Depending on the location of the set and the light level in the room (ambient light) it is nevertheless a good idea to reduce the contrast slightly for optimum picture quality.

3 Complete the setting with » TXT«.

15

SETTINGS ____________________________________________________________________________________
Sound settings
Stereo depth
Sound
TV P 01
......

Stereo Stereo

Widens the acoustic pattern for stereo programmes and improves it for mono programmes.

y y
u

1 Call up the »Sound« menu with » F «. 2 Select the » . » lines with »P+« or »P-«.
TXT

3 Select » ....... « with » « or » «. 4 Complete the setting with »TXT«.

Sound ���������������������� ������������
TV P 01
Dolby Surround

Dolby Surround *
Dolby Surround is an electronic solution which is fully integrated in the TV and requires only 2 additional speakers to create Dolby Surround effects.
Stereo Stereo

y y
u

1 Call up the »Sound« menu with » F «.
TXT

2 Select the » . » lines with »P+« or »P-«. 3 Select » Dolby Surround« with » « or » «. 4 Complete the setting with »TXT«.

* Under license from Dolby Laboratories Licensing Corporation.

16
1 - 22

DOLBY and the double-D symbol Corporation.

are trademarks of Dolby Laboratories Licensing

ENGLISH

GRUNDIG Service
