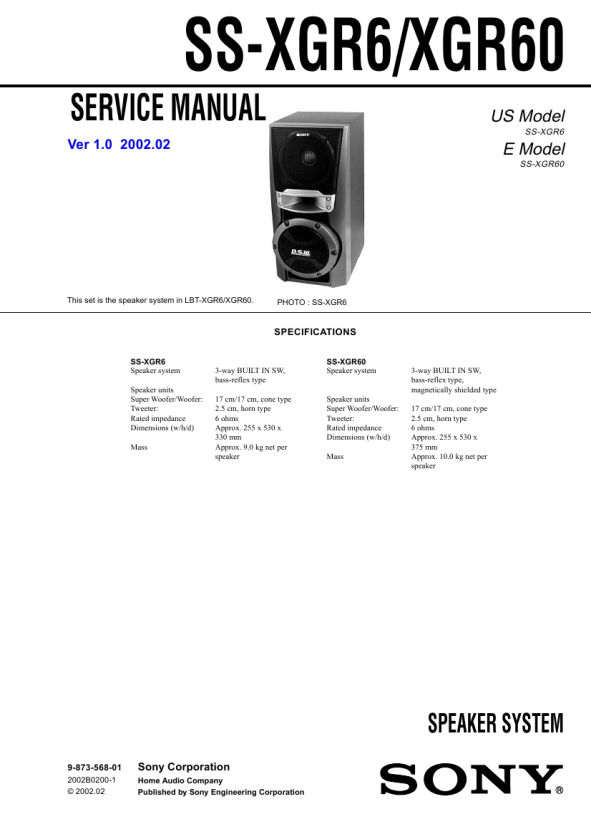

SS-XGR6/XGR60
SERVICE MANUAL
Ver 1.0 2002.02

US Model
SS-XGR6

E Model
SS-XGR60

This set is the speaker system in LBT-XGR6/XGR60.

PHOTO : SS-XGR6

SPECIFICATIONS
SS-XGR6 Speaker system Speaker units Super Woofer/Woofer: Tweeter: Rated impedance Dimensions (w/h/d) Mass SS-XGR60 Speaker system

3-way BUILT IN SW, bass-reflex type 17 cm/17 cm, cone type 2.5 cm, horn type 6 ohms Approx. 255 x 530 x 330 mm Approx. 9.0 kg net per speaker

3-way BUILT IN SW, bass-reflex type, magnetically shielded type 17 cm/17 cm, cone type 2.5 cm, horn type 6 ohms Approx. 255 x 530 x 375 mm Approx. 10.0 kg net per speaker

Speaker units Super Woofer/Woofer: Tweeter: Rated impedance Dimensions (w/h/d) Mass

SPEAKER SYSTEM
9-873-568-01
2002B0200-1 © 2002.02

Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
