SONY SSRG40
Manual de Servicio

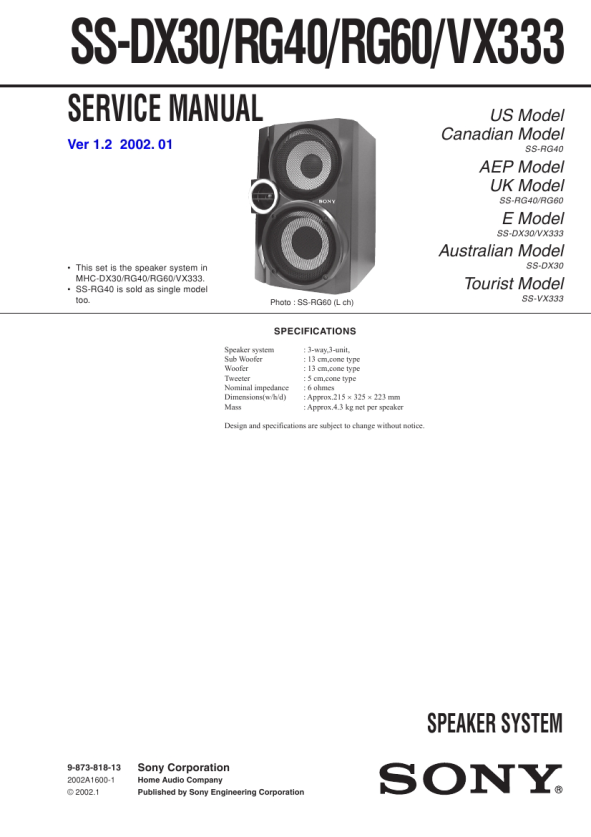

SS-DX30/RG40/RG60/VX333
SERVICE MANUAL
Ver 1.2 2002. 01

US Model Canadian Model
SS-RG40

AEP Model UK Model
SS-RG40/RG60

E Model
SS-DX30/VX333

Australian Model
� This set is the speaker system in MHC-DX30/RG40/RG60/VX333. � SS-RG40 is sold as single model too.
Photo : SS-RG60 (L ch)

SS-DX30

Tourist Model
SS-VX333

SPECIFICATIONS
Speaker system Sub Woofer Woofer Tweeter Nominal impedance Dimensions(w/h/d) Mass : 3-way,3-unit, : 13 cm,cone type : 13 cm,cone type : 5 cm,cone type : 6 ohmes : Approx.215 � 325 � 223 mm : Approx.4.3 kg net per speaker

Design and specifications are subject to change without notice.

SPEAKER SYSTEM
9-873-818-13
2002A1600-1 © 2002.1

Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
