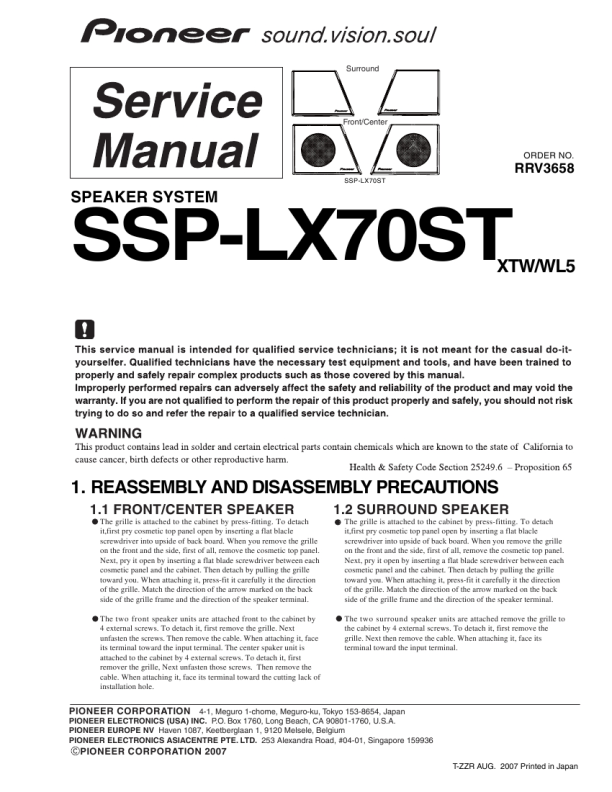

ORDER NO.
RRV3658
SSP-LX70ST
SPEAKER SYSTEM
SSP-LX70ST
XTW/WL5
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 FRONT/CENTER SPEAKER
The grille is attached to the cabinet by press-fitting. To detach it,first pry cosmetic top panel open by inserting a flat blacle screwdriver into upside of back board. When you remove the grille on the front and the side, first of all, remove the cosmetic top panel. Next, pry it open by inserting a flat blade screwdriver between each cosmetic panel and the cabinet. Then detach by pulling the grille toward you. When attaching it, press-fit it carefully it the direction of the grille. Match the direction of the arrow marked on the back side of the grille frame and the direction of the speaker terminal. The two front speaker units are attached front to the cabinet by 4 external screws. To detach it, first remove the grille. Next unfasten the screws. Then remove the cable. When attaching it, face its terminal toward the input terminal. The center spaker unit is attached to the cabinet by 4 external screws. To detach it, first remover the grille, Next unfasten those screws. Then remove the cable. When attaching it, face its terminal toward the cutting lack of installation hole.
1.2 SURROUND SPEAKER
The grille is attached to the cabinet by press-fitting. To detach it,first pry cosmetic top panel open by inserting a flat blacle screwdriver into upside of back board. When you remove the grille on the front and the side, first of all, remove the cosmetic top panel. Next, pry it open by inserting a flat blade screwdriver between each cosmetic panel and the cabinet. Then detach by pulling the grille toward you. When attaching it, press-fit it carefully it the direction of the grille. Match the direction of the arrow marked on the back side of the grille frame and the direction of the speaker terminal. The two surround speaker units are attached remove the grille to the cabinet by 4 external screws. To detach it, first remove the grille. Next then remove the cable. When attaching it, face its terminal toward the input terminal.
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
T-ZZR AUG. 2007 Printed in Japan
|
|
|
> |
|
