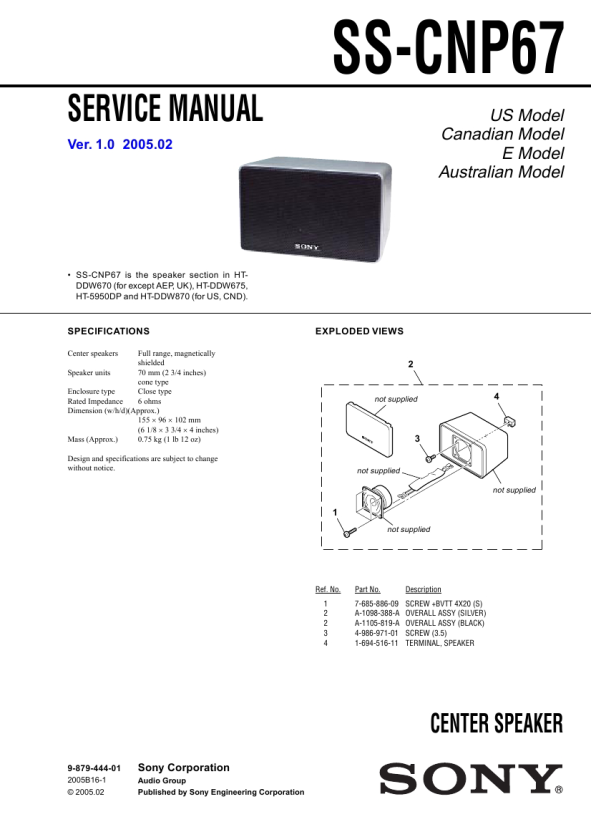

SS-CNP67
SERVICE MANUAL
Ver. 1.0 2005.02

US Model Canadian Model E Model Australian Model

� SS-CNP67 is the speaker section in HTDDW670 (for except AEP, UK), HT-DDW675, HT-5950DP and HT-DDW870 (for US, CND).

SPECIFICATIONS
Center speakers Speaker units Enclosure type Rated Impedance Full range, magnetically shielded 70 mm (2 3/4 inches) cone type Close type 6 ohms

EXPLODED VIEWS
2

not supplied

4

Dimension (w/h/d)(Approx.) 155 � 96 � 102 mm (6 1/8 � 3 3/4 � 4 inches) Mass (Approx.) 0.75 kg (1 lb 12 oz) Design and specifications are subject to change without notice.

3
not supplied not supplied

1
not supplied

Ref. No. 1 2 2 3 4

Part No. 7-685-886-09 A-1098-388-A A-1105-819-A 4-986-971-01 1-694-516-11

Description SCREW +BVTT 4X20 (S) OVERALL ASSY (SILVER) OVERALL ASSY (BLACK) SCREW (3.5) TERMINAL, SPEAKER

CENTER SPEAKER
9-879-444-01
2005B16-1 © 2005.02

Sony Corporation
Audio Group Published by Sony Engineering Corporation
