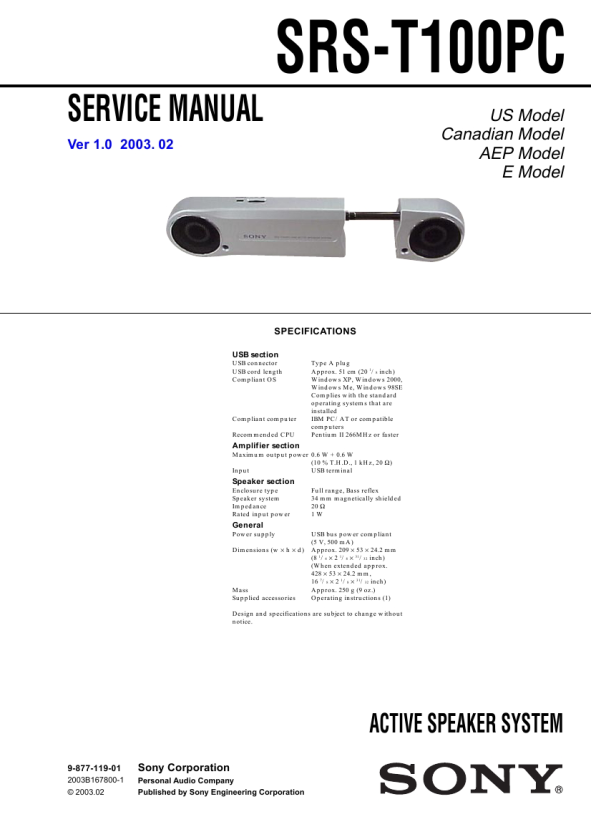

SONY SRST100PC
Manual de Servicio

SRS-T100PC
TABLE OF CONTENTS 1. GENERAL ·········································································· 3 2. DIAGRAMS
2-1. Printed Wiring Board ······················································ 5 2-2. Schematic Diagram ························································· 6 2-3. IC Block Diagrams ························································· 7 Notes on chip component replacement � Never reuse a disconnected chip component. � Notice that the minus side of a tantalum capacitor may be damaged by heat.

3. EXPLODED VIEWS
3-1. Left Speaker Section ······················································· 9

4. ELECTRICAL PARTS LIST ······································· 10

2
