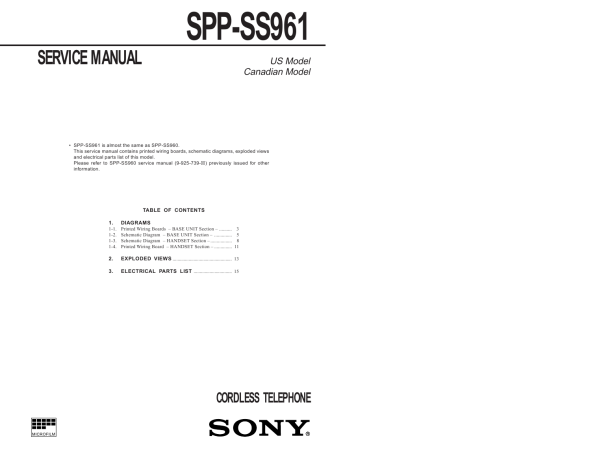

SONY SPPSS961
Manual de Servicio

� Waveform
1 IC501 (¶ (XTALI)

2.9 Vp-p

9.6 MHz

Note: � All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. � All resistors are in � and 1/4 W or less unless otherwise � � � � � � � � specified. C : panel designation. U : B+ Line. Power voltage is dc 3.6 V and fed with regulated dc power supply from external power voltage jack (CN301). Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : Talk Voltages are taken with a VOM (Input impedance 10 M�). Voltage variations may be noted due to normal production tolerances. Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. Circled numbers refer to waveforms. Signal path. N : RX O : TX P : bell

�8�
