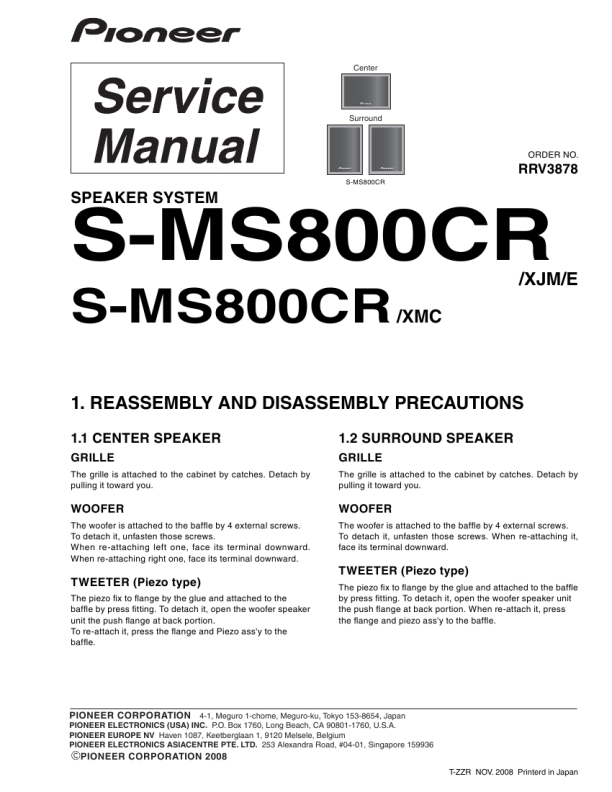

PIONEER S-MS800CR/XMC
Manual de Servicio

Center

Surround

ORDER NO.

RRV3878
S-MS800CR

SPEAKER SYSTEM

S-MS800CR
S-MS800CR
1.1 CENTER SPEAKER
GRILLE
The grille is attached to the cabinet by catches. Detach by pulling it toward you.

/XMC

/XJM/E

1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.2 SURROUND SPEAKER
GRILLE
The grille is attached to the cabinet by catches. Detach by pulling it toward you.

WOOFER
The woofer is attached to the baf�e by 4 external screws. To detach it, unfasten those screws. When re-attaching left one, face its terminal downward. When re-attaching right one, face its terminal downward.

WOOFER
The woofer is attached to the baf�e by 4 external screws. To detach it, unfasten those screws. When re-attaching it, face its terminal downward.

TWEETER (Piezo type)
The piezo �x to �ange by the glue and attached to the baf�e by press �tting. To detach it, open the woofer speaker unit the push �ange at back portion. To re-attach it, press the �ange and Piezo ass'y to the baf�e.

TWEETER (Piezo type)

The piezo �x to �ange by the glue and attached to the baf�e by press �tting. To detach it, open the woofer speaker unit the push �ange at back portion. When re-attach it, press the �ange and piezo ass'y to the baf�e.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2008
T-ZZR NOV. 2008 Printerd in Japan
