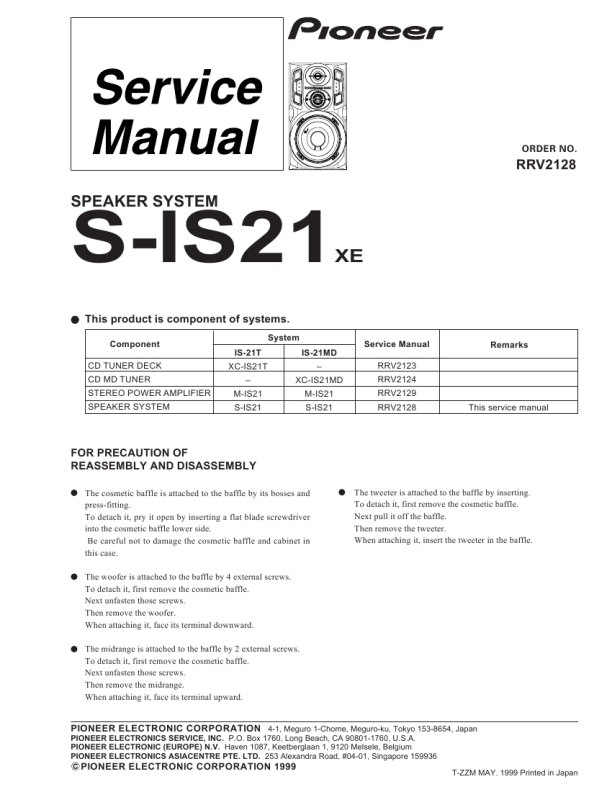

ORDER NO.
RRV2128
SPEAKER SYSTEM
S-IS21XE
This product is component of systems.
Component CD TUNER DECK CD MD TUNER STEREO POWER AMPLIFIER SPEAKER SYSTEM System IS-21T XC-IS21T � M-IS21 S-IS21 IS-21MD � XC-IS21MD M-IS21 S-IS21 Service Manual RRV2123 RRV2124 RRV2129 RRV2128 This service manual Remarks
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The cosmetic baffle is attached to the baffle by its bosses and press-fitting. To detach it, pry it open by inserting a flat blade screwdriver into the cosmetic baffle lower side. Be careful not to damage the cosmetic baffle and cabinet in this case. The woofer is attached to the baffle by 4 external screws. To detach it, first remove the cosmetic baffle. Next unfasten those screws. Then remove the woofer. When attaching it, face its terminal downward. The midrange is attached to the baffle by 2 external screws. To detach it, first remove the cosmetic baffle. Next unfasten those screws. Then remove the midrange. When attaching it, face its terminal upward. The tweeter is attached to the baffle by inserting. To detach it, first remove the cosmetic baffle. Next pull it off the baffle. Then remove the tweeter. When attaching it, insert the tweeter in the baffle.
PIONEER ELECTRONIC CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1999
T-ZZM MAY. 1999 Printed in Japan
|
|
|
> |
|
