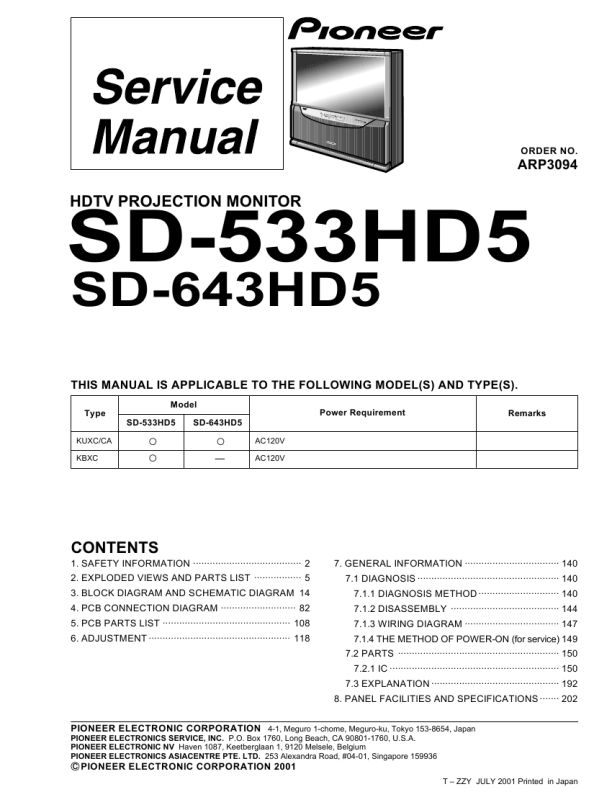

SD-533HD5, SD-643HD5
� Pattern for each adjustment item
Key No. ` STATIC Key No. 1 SKEW Key No. 5 SUB PIN Key No. 7 LIN
RH BH
Key No. 8 SIZE = Fixed position
Key No. ` STATIC
Key No. 1 SKEW
Key No. 4 KEY
Key No. 6 PIN
RV BV
Key No. 7 LIN
Key No. 8 SIZE
Note 1: When the red CRT is replaced, or when the deflection yoke for the red is replaced, prior to adjustment, tune the center of the image to the center of the screen by turning the centering magnet. Note 2: When the DEFLECTION SERVICE Assy or DIGITAL CONV. Assy is replaced, make coarse adjustment as shown in 3.5 above.
3.6 Fine-adjustment of the Red
To fine-adjust the red, press the SET/ENTER key to enter MANUAL CONVERGENCE mode. Repeat the coarse adjustment described in "3.5 Coarse Adjustment of the Red" if necessary. Make adjustment for each SCREEN mode, and eliminate distortion to converge with the green.
3.6.1
Press the SET/ENTER key to enter MANUAL CONVERGENCE mode, and make adjustment in the same manner as with the green. First, adjust the vertical and horizontal the red lines at the center of the screen so that they converge with the green center lines.
3.6.3
Adjust the red horizontal lines so that they converge with the green horizontal lines. Proceed to adjustment of the upper half of the screen, then the lower half. Adjustment should be done from the part where convergence is greatly dislocated.
3.6.2
Adjust the red vertical lines so that they converge with the green vertical lines. Proceed to adjustment of the right half of the screen, then the left half. Adjustment should be done from the part where convergence is greatly dislocated.
3.6.4
Repeat the adjustments described in 3.6.2 and 3.6.3 so that all the red vertical and horizontal lines converge with the green lines. (Completion of one screen mode)
133
|
|
|
> |
|
