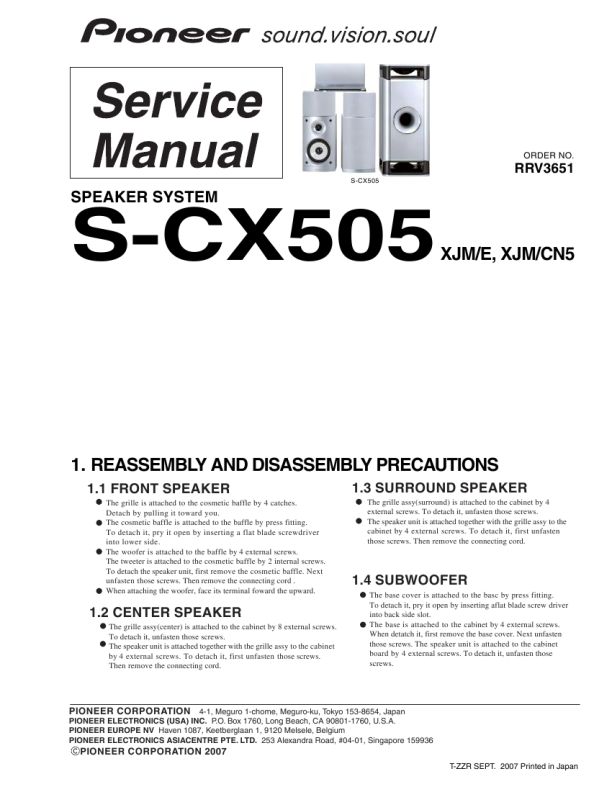

ORDER NO.
RRV3651
S-CX505
SPEAKER SYSTEM
S-CX505
XJM/E, XJM/CN5
1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 FRONT SPEAKER
The grille is attached to the cosmetic baffle by 4 catches. Detach by pulling it toward you. The cosmetic baffle is attached to the baffle by press fitting. To detach it, pry it open by inserting a flat blade screwdriver into lower side. The woofer is attached to the baffle by 4 external screws. The tweeter is attached to the cosmetic baffle by 2 internal screws. To detach the speaker unit, first remove the cosmetic baffle. Next unfasten those screws. Then remove the connecting cord . When attaching the woofer, face its terminal foward the upward.
1.3 SURROUND SPEAKER
The grille assy(surround) is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. The speaker unit is attached together with the grille assy to the cabinet by 4 external screws. To detach it, first unfasten those screws. Then remove the connecting cord.
1.4 SUBWOOFER
The base cover is attached to the basc by press fitting. To detach it, pry it open by inserting aflat blade screw driver into back side slot. The base is attached to the cabinet by 4 external screws. When detatch it, first remove the base cover. Next unfasten those screws. The speaker unit is attached to the cabinet board by 4 external screws. To detach it, unfasten those screws.
1.2 CENTER SPEAKER
The grille assy(center) is attached to the cabinet by 8 external screws. To detach it, unfasten those screws. The speaker unit is attached together with the grille assy to the cabinet by 4 external screws. To detach it, first unfasten those screws. Then remove the connecting cord.
PIONEER CORPORATION
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2007
T-ZZR SEPT. 2007 Printed in Japan
|
|
|
> |
|
