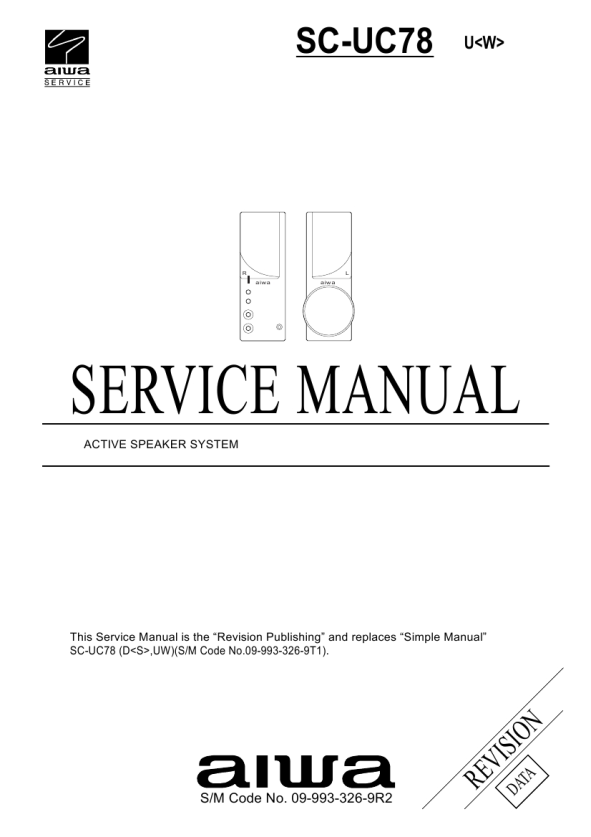

AIWA SCUC78
Manual de Servicio

REF. NO !T2 PT1 C.B !PT1

KANRI DESCRIPTION NO. 82-304-743-010 TERMINAL, 1P

PART NO.

87-YP5-608-110

PT,U

� Regarding connectors, they are not stocked as they are not the initial order items. The connectors are available after they are supplied from connector manufacturers upon the order is received.

CHIP RESISTOR PART CODE

Chip Resistor Part Coding

88
A
Resistor Code Value of resistor Chip resistor
Dimensions (mm)

Figure

Wattage 1/16W 1/16W 1/10W 1/8W

Type 1005 1608 2125 3216

Tolerance 5% 5% 5% 5%

Symbol CJ CJ CJ CJ

Form
L W

L 1.0
t

W 0.5 0.8 1.25 1.6

t 0.35 0.45 0.45 0.55

:A Resistor Code : A
104 108 118 128

1.6 2 3.2

TRANSISTOR ILLUSTRATION

ECB 2SA1015 2SC1815

BCE 2SB1370 2SD2061

4
