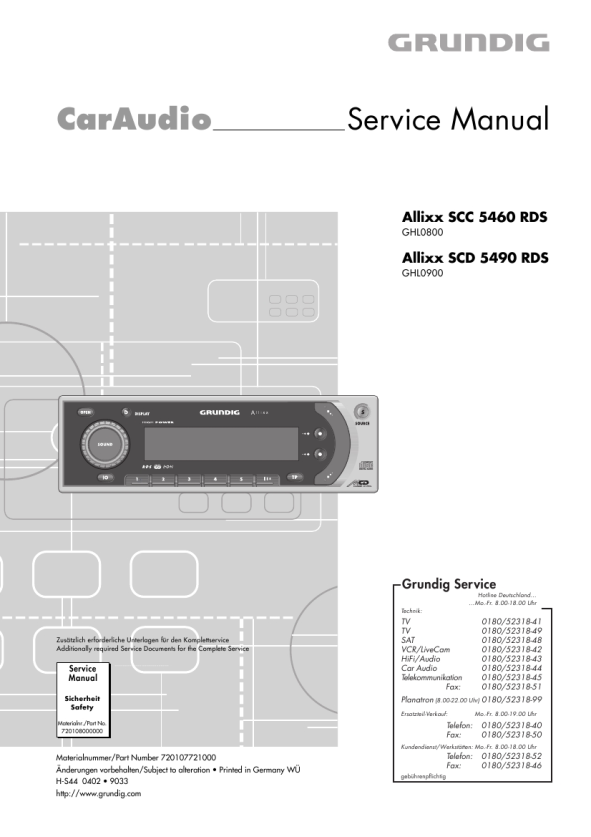

Allixx SCC 5460 RDS / Allixx SCD 5490 RDS
Allgemeiner Teil / General Section
EXPERT LEVEL _____________________________________________________________________________
9: Beep � Signal tone on/off � Display: »Beep On« � Signal tone for confirming functions. � Display: »Beep Off« � Functions are confirmed by a brief muting of the loudspeakers. 10: AM Band � On/off � Display: »On« � The AM range can be selected. � Display: »Off« � The AM range is switched off. 11: SW Band � On/off � Display: »On« � The KW range can be selected. � Display: »Off« � The KW range is switched off. 12: Search level� Search sensitivity � Display: »Local« � Reduced search sensitivity. � Display: »DX« � Immediate increased sensitivity. 13: RDS Regional � Automatic changing of the regional station - Display: »On« or »Off« � Display: »RDS Regional On« � Frequency change only possible between regional stations. � Display: »RDS Regional Off« � Station change via automatic search. 14: Date Format � Display: »DDMMYY« or »YYMMDD« 15: Clock »On«, »Off« or »RDS« (RDS synchronisation) Note: With RDS synchronisation, settings 16 18 disappear. When Time is Off, settings 15-19 disappear. 16: Time setting 17: Year setting 18: Date setting 19: Standby Clock � On or off. The time is displayed when the ignition is switched on. 20: Ignition � Switching on and off � Display: »Ignition On« � The car radio can be switched on and off with the vehicle ignition. � Display: »Ignition Off« � The device can only be switched on and off by pressing »IO«. 21: MCD/Aux/MP3 Level setting CD changer volume adaptation (if connected). 22: Tape Level/CD Level setting Tape or CD unit volume adaptation. 25: Display � Setting the positive or negative display. � Display: »Blue« or »White«. 26: Displ. contrast � Setting the contrast for the display field. � Display: »Disp Contrast«, bordered display. 27: Day/Night � Adaptation to the instrument illumination. � Display: »On« or »Off«.
ENGLISH 15
CODING ____________________________________________________________
The code number for the device can be found on the identity card. Coding is not activated by default. When the coding is activated, the device is electronically secure. Following removal, it can only be switched on again if the code number is re-entered. Example: Code number 1703 »1« »2« »3« »4« Press briefly once Press briefly ten times Press briefly three times »1000« »1700« »1703« Press briefly seven times »1700«
Renewed operation when coding is active
1 Switch on the car radio. � Display: temporarily »SAFE«, then »1----«. � The »1« indicates the number of attempts at entering the code. 2 Enter the code number using the station buttons »1«, »2«, »3«, »4«. 3 Press SOUND to confirm your entry. � The radio is in operating mode. Note: Only enter the correct code number! Take note of the increasing waiting time between attempts. After the sixth failed attempt we recommend that you have a specialist dealer enter the code. The waiting time not elapsed is displayed.
Activating coding
1 Select the EXPERT level by pressing SOUND until EXPERT appears in the display. 2 Select »Protection« using the volume knob. 3 Press SOUND briefly. � Display: »----« flashes. 4 Enter the code number by pressing memory buttons »1« � »4« repeatedly.
5 Briefly press SOUND to confirm. � Display: »SAFE« � Coding is activated. 6 To quit the EXPERT level hold down SOUND until you hear the signal.
Deactivating coding
1 If, for example, you want to remove the device, select the EXPERT level and select »SAFE« on the display. 2 To deactivate the coding, repeat steps 3 to 6.
16 ENGLISH
GRUNDIG Service
1-7
|
|
|
> |
|
