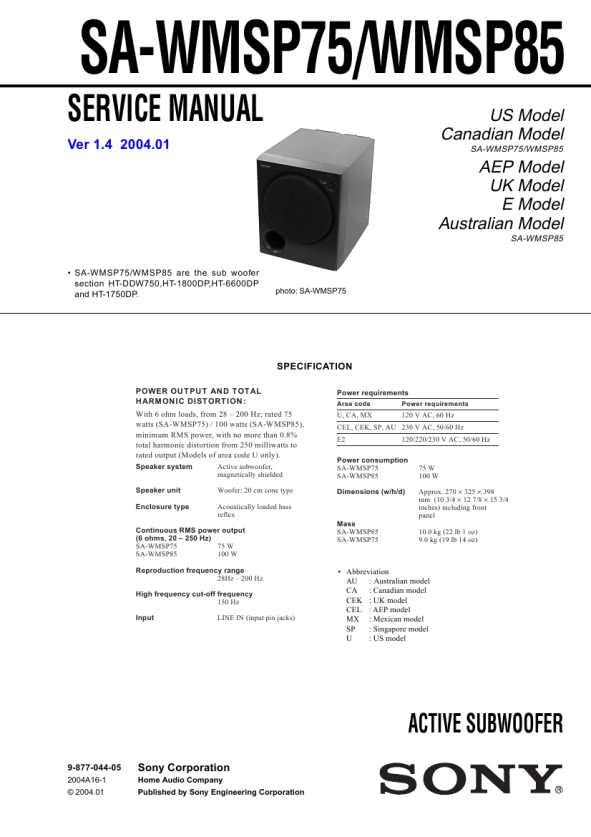

SONY SAWMSP85
Manual de Servicio

SA-WMSP75/WMSP85 SECTION 1 DIAGRAMS
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.)
Note on Printed Wiring Boards: � X : parts extracted from the component side. � Y : parts extracted from the conductor side. � b : Pattern from the side which enables seeing. Note on Schematic Diagram: � All capacitors are in µF unless otherwise noted. p: pF. 50 WV or less are not indicated except for electrolytics and tantalums. � 2 : nonflammable resistor. � 5 : fusible resistor. � All resistors are in � and 1/4 W or less unless otherwise specified. � C : panel designation.
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

1-2. IC Block Diagrams

IC301 STK404-130S (MAIN Board)

� A : B+ Line. � B : B� Line. � Voltages are dc with respect to ground under no-signal conditions. no mark : Power on � Voltages are taken with a VOM (Input impedance 10M�). Voltage variations may be noted due to normal preduction tolerances. � Signal path. F : AUDIO � Abbreviation CND : Canadian model. E2 : 120V AC Area in E model. MX : Mexican model.

1

2

3

4

SUB

5

6

7

8

9

10

11

12

13

1-1. Circuit Board Location
INPUT(CONTROL) BOARD MAIN BOARD SWITCH BOARD

IC301 STK-404-100S (MAIN Board)

SUB 1 2 3 4 5 6 7 8 9 10 11 12

POWER TRANS BOARD

CONTROL BOARD
