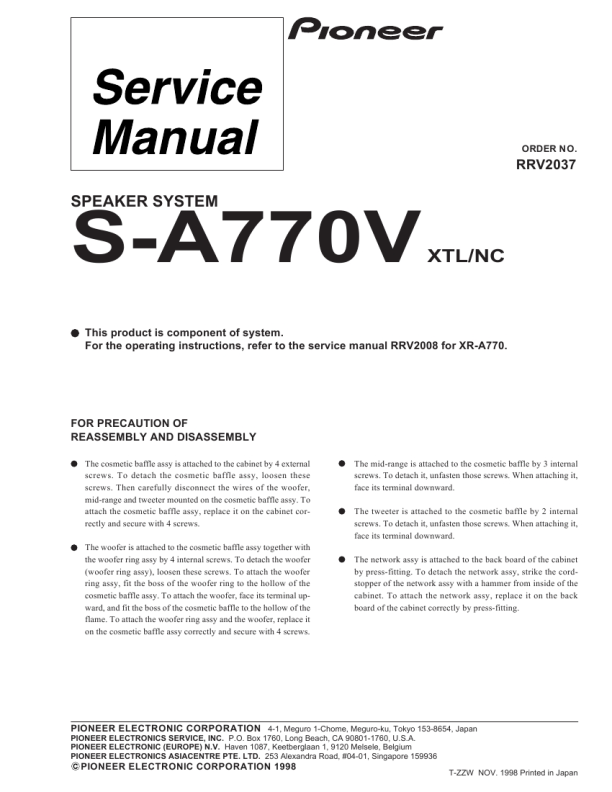

PIONEER S-A770V/XTL/NC
Manual de Servicio

S-A770V

PARTS LIST
NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.

Mark No.
NSP

Description

Part No.
SMM1832 SWN1578 SDD1262 SEC1416 SEC1414 SEC1424 SMV1916 SME2850 SAN2645 SME2851 SAN2646 SXB1331 SNC1163 SNK2309 SNK2311 SXB1332 SNC1164 SNK2310 SNK2311 SXB1323 SNK2293 SXB1324 SNC1160 SNK2292

Mark No.

Description

Part No.
P16EN79-51F FD87CC50-51C E52AP39-55D BPZ30P080FMC BPZ40P100FMC BPZ40P300FMC SBA1162

Cabinet Network ASSY CS Cord (for Woofer) Non Skid Pad Gasket (for Baffle Wide) Gasket (for Baffle Height) Acoustic Absorbent Stamped Model Label Model Label (L) Stamped Model Label Model Label (R) Baffle ASSY (L) Punching Net (L) Cosmetic Baffle (L) Duct Baffle ASSY (R) Punching Net (R) Cosmetic Baffle (R) Duct Woofer Ring ASSY Woofer Ring Cosmetic Ring ASSY Punching Net Cosmetic Ring

Speaker (Woofer) Speaker (Mid-range) Speaker (Tweeter) Screw (for Tweeter) Screw (for Mid-range) Screw (for Woofer and Woofer Ring ASSY) Tapping Screw (for Cosmetic Baffle)

NSP NSP NSP NSP NSP

For Packing
Top Protector Bottom Protector Protection Sheet S3 Packing Case Polyethylene Bag S5 SHA2154 SHA2155 SHC1730 SHG2150 SHL1230

NSP NSP NSP

NSP

NSP NSP NSP

NSP NSP NSP NSP

SCHEMATIC DIAGRAM
Network ASSY (SWN1578)

Mid-range
Blue INPUT White White White Blue

CS Cord (SDD1262)

Woofer
Red INPUT Red

2.2µF
Red

Black

Black

Tweeter

2
