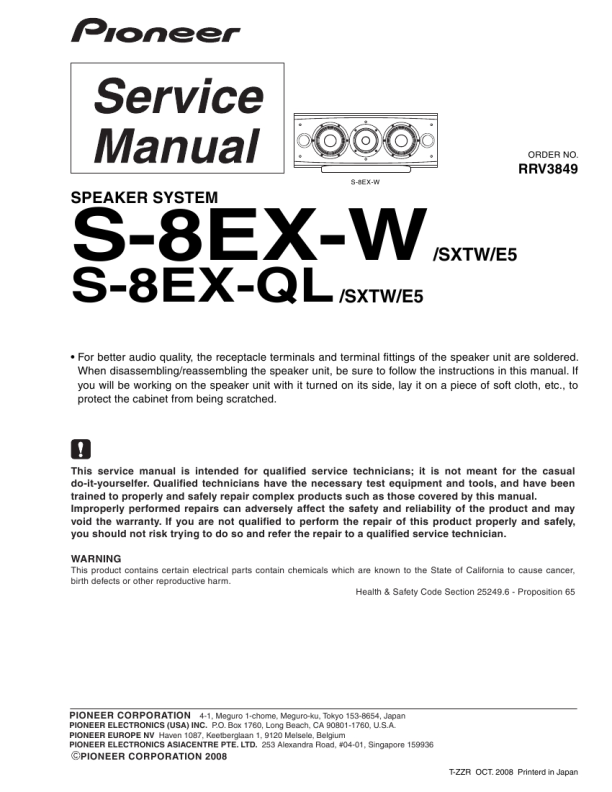

PIONEER S-8EX-W/SXTW/E5
Manual de Servicio

1

2

3

4

1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 GRILLE
A

How to Attach/Detach the Grille Net
The grille net is provided with this speaker system. To attach or detach the grille net, proceed as follows. (1) To attach the grille net, align the six projections of the grille net with the holes on the speaker unit then push it in. (2) To detach, hold the upper and lower edges of the left part of the grille net with both hands and gently pull it toward you to detach the left part of the grille net. (3) Hold the upper and lower edges of the central part of the grille net with both hands and gently pull it toward you to detach the central part of the grille net. (4) In the same way, hold the upper and lower edges of the right part of the grille net and pull it toward you. The entire grille net will then be detached.

B

C

D

E

F

2
1 2

S-8EX-W
3 4
