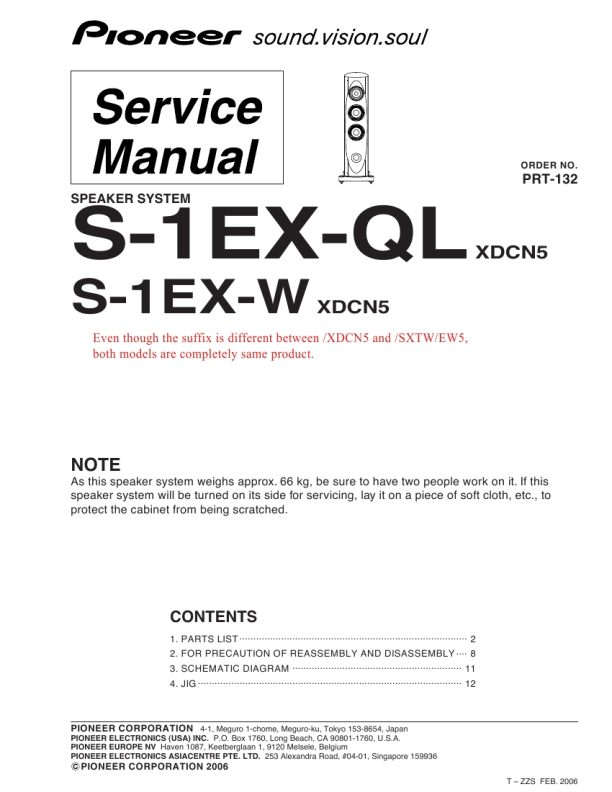

PIONEER S-1EX-QL/SXTW/EW5
Manual de Servicio


¡Twitee acerca de este producto y obtenga $1.00 de crédito en la tienda para uso!
  • Contiene diagramas del circuito
  • Descargable
  • Formato PDF
  • Manual completo
  • Idiomas: English
Precio: $4.99

Descripción del PIONEER S-1EX-QL/SXTW/EW5 Manual de Servicio

Manual de servicio completo en formato digital (archivo PDF). Los manuales de servicio por lo general contienen diagramas de circuitos, tarjetas de circuitos impresos, consejos para reparación, diagramas de cableado, diagramas de bloque y lista de refacciones. El Manual de Servicio (a veces llamado Manual de Reparación) es usado principalmente por los técnicos.

Si tan solo quiere saber cómo utilizar su televisión, reproductor de vídeo, reproductor de mp3, etc. Quizá lo que necesita es el Manual del Propietario. Después de colocar la orden le enviaremos las instrucciones de descarga a su dirección de e-mail.

The manual is available in languages: English

Not yet ready
You must purchase it first

Opiniones de los clientes
No hay comentarios de productos.

TEXT_PDF_SNIPPET
1

2

3

4

2.3 NETWORK ASSY
Before removing the Network Assy, remove the grille and each speaker unit then disconnect the cords from the speaker unit. � For removal/reattachment of the Network Assy for the woofer: Only the woofer must be removed. � For removal/reattachment of the Network Assy for the midrange/tweeter: Removal of all the units is required.
A

2.3.1 Network Assy for the Woofers
� The Network Assy for the woofers is located inside the back board behind the lower woofer and secured with 4 screws. (1) Remove the acoustic absorbent pads at the input terminals. (See Figs. 2-5 to 2-8.) (2) Remove the 2 nuts that secure the round connectors from the lower input terminals. (See Fig. 2-1. Tool: Box wrench, 14 mm/GGH-002) (3) Remove the 4 screws that secure the Network Assy then pull the Assy out through the hole where the woofer was attached. (See Fig. 2-2.) (4) When reattaching, pass the Network Assy through the hole where the lower woofer was attached then secure it in place with the 4 screws. (See Fig. 2-2.) (5) Among the 3 pairs of cords from the Network Assy, connect the cords with black tape to the lower input terminals and secure them with the nuts. (See Fig. 2-1. Tool: Box wrench, 14 mm/GGH-002) (6) Apply adhesive to the secured nuts. (Adhesive: DIABOND black/GYL-014) (7) Reinstall the acoustic absorbent pads at the input terminals. (See Figs. 2-5 to 2-8.) (8) Among the 3 pairs of cords from the Network Assy, connect and solder the remaining 2 pairs of cords with white tape to the woofer and reattach the woofer in the cabinet.

2.3.2 Network Assy for the midrange / tweeter
� The Network Assy for the midrange/tweeter is attached to the inside of the left side board behind the upper woofer, using 4 screws. (1) Remove the acoustic absorbent pads at the input terminals, inside and at the rear of the chamber, and behind the chamber. (See Figs. 2-5 to 2-8 and 2-9 to 2-11.) (2) Remove the 2 nuts that secure the round connectors from the upper input terminals. (See Fig. 2-1. Tool: Box wrench, 14 mm/GGH-002) (3) Remove the 4 screws that secure the closure panel inside the chamber, remove the 4 screws that secure the Network Assy, and pull the Network Assy out through the hole where the woofer was attached. (See Figs. 2-3 and 2-4. Tool: Screwdriver/GGK1012) (4) When reattaching, pass the Network Assy through the hole where the upper woofer was attached and secure it in place using the 4 screws. (See Fig. 2-3. Tool: Screwdriver/GGK1012) (5) Among the cords from the Network Assy, connect the cords with the round connectors to the upper input terminals and secure them with the nuts. (See Fig. 2-1. Tool: Box wrench, 14 mm/GGH-002) (6) Apply adhesive to the secured nuts. (Adhesive: DIABOND black/GYL-014) (7) Pass the 2 pairs of cords from the closure panel through behind the chamber then secure the closure panel from inside the chamber, using the 4 screws. (See Fig. 2-4.) (8) Reinstall the acoustic absorbent pads at the input terminals, inside and rear of the chamber, and behind the chamber. (See Figs. 2-5 to 2-8 and 2-9 to 2-11.) (9) Connect and solder the cords to the coaxial-unit speaker and reattach it in the cabinet.

B

C

Apply adhesive. +: White with Black line
From the Network Assy for the midrange/tweeter From the Network Assy for the woofers

-: White Apply adhesive.

D

Fig. 2-1: Input terminals (inside the cabinet) Upper side Upper side

E
Closure panel : Screws

Bottom side Bottom side : Screws Fig. 2-2: Specifications for attaching the Network Assy for the woofers : Screws Fig. 2-3: Specifications for attaching the Network Assy for the midrange/tweeter

Chamber Fig. 2-4: Specifications for attaching the closure panel (cross-sectional view of the coaxial-unit speaker)

F

S-1EX
1 2 3 4

9
