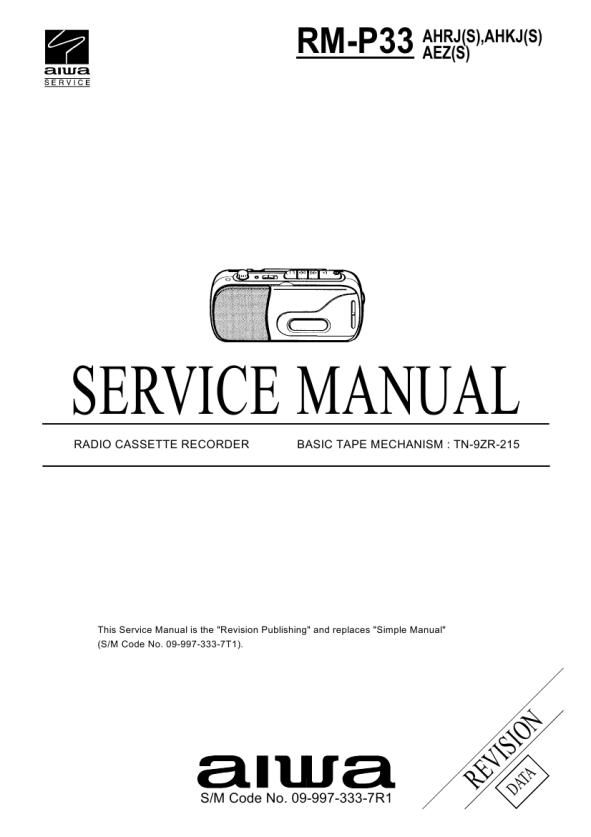

AIWA RMP33AEZAK
Manual de Servicio

MECHANICAL MAIN PARTS LIST

REF. NO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

PART NO.

KANRI NO.

DESCRIPTION

REF. NO 21 22 23 24 25 26 27 28 29 30 31 32 A B C D E F G H

PART NO.

KANRI NO.

DESCRIPTION

8Z-CM3-017-010 8Z-CM3-003-010 8Z-CM3-015-010 8Z-CM3-009-010 8Z-CM3-019-010 8Z-CM3-010-010 8Z-CM3-011-010 8Z-CM3-008-010 8Z-CM3-207-010 88-CS8-625-010 86-CM3-605-010 88-CM2-204-010 8Z-CM3-202-010 88-CM2-206-010 86-CM3-213-010 86-CM3-204-010 8Z-CM3-205-010 8Z-CM3-013-010 8Z-CM3-012-010 86-CM3-202-010

WINDOW,CASS HR LID,CASS CABI,FRONT EX POINTER, PLATE,TOP EX KNOB,SL FUNCTION KNOB,RTRY VOLUME KNOB,RTRY TUNING SPR-P,CASS MIC SPKR HLDR,SPKR HLDR,LED SPR-P,DOOR CASS SPR-P,REC SHAFT,REC LEVER,REC KEY,CASS REC KEY,CASS SET GEAR,VC

86-CM3-214-010 8Z-CM3-201-010 88-CM2-211-010 8Z-CM3-203-010 8Z-CM3-204-010 88-CM2-210-010 8Z-CM3-016-010 8Z-CM3-006-010 8Z-CM3-005-010 86-CM3-609-010 8Z-CM3-014-010 8Z-CM3-206-010 87-751-035-410 8Z-CM3-208-010 87-B10-114-010 87-741-095-410 87-267-527-310 87-751-099-410 87-264-073-410 87-741-096-410

GEAR,MIDDLE CHAS,GEAR SPR,BATT B(-) BOX,BATTERY HLDR,KNOB FUNCTION SPR,BATT A(-) CABI,REAR EX LID,BATTERY HANDL, ANT,ROD GRILLE,SPKR HLDR,PWB VT2+2-6W/0 SLOT UT2+1.7-10 W/O VT2+2-12 CR UT2+3-8 GLD SCREW, V+1.7-3 VT2+3-15 W/O SLOT V+2.6-4 CR UT2+3-10

COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color B Black C Cream D Orange G Green H Gray L Blue LT Transparent Blue N Gold P Pink R Red S Silver ST Titan Silver T Brown V Violet W White WT Transparent White Y Yellow YT Transparent Yellow LM Metallic Blue LL Light Blue GT Transparent Green LD Dark Blue DT Transparent Orange
