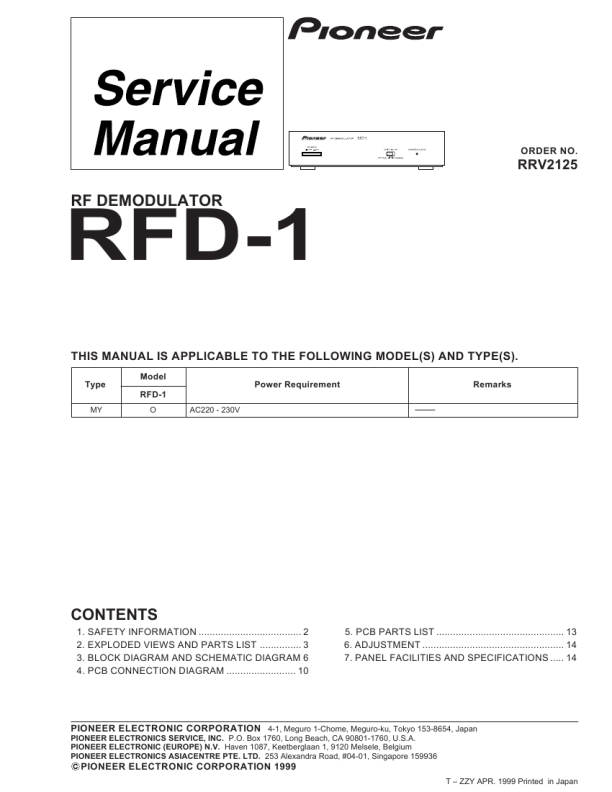

PIONEER RFD1 II
Manual de Servicio

RFD-1

2. EXPLODED VIEWS and PARTS LIST
NOTES:

� Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. � The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. � Screws adjacent to mark on the product are used for disassembly.

2.1 PACKING
5

FRONT

2 3 4 PIONEER 1

FR

ONT

4

PIONEER

6

PIONEE

PIONEER

R

PACKING PARTS LIST
Mark No.
NSP 1 2 3 4 5 6 7

Description

Part No.

Power Cord ADG1127 Warranty Card ARY7022 Operating Instructions ARE7212 (English/French/German/Italian /Dutch/Swedish/Spanish/Portuguese) Protector DHA1235 Packing Sheet RHC1050 Packing Case Master Carton AHG7058 AHG7060

PIONEER

7

3
