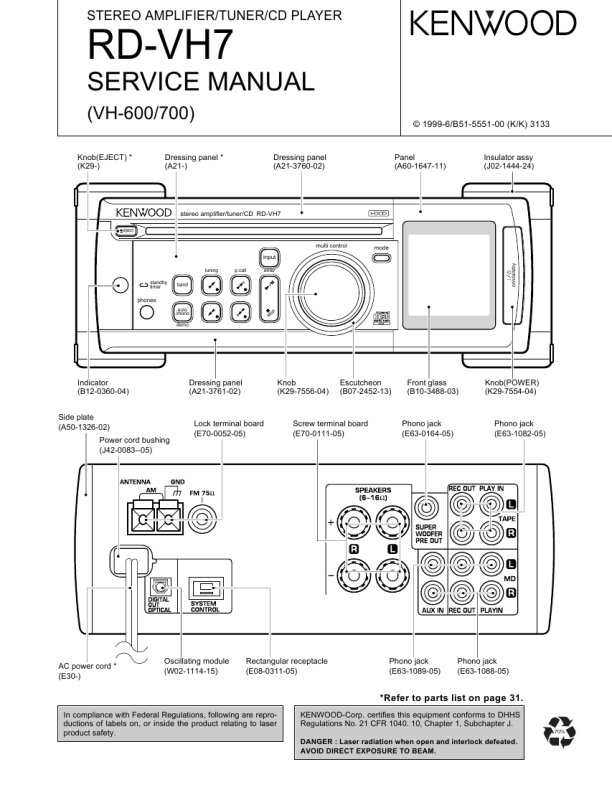

KENWOOD RDVH7
Manual de Servicio

RD-VH7
CD MECHANISM DESCRIPTION
The initialization position of mechanism is the slider(loading) 1 position at the back most. The mechanism moves from this position.

1. 8cm DISC loading in
1) Insert a disc î Check by a disc detection sensor2 (prism reflection ray OFF) î Start loading motor3 î Move the roller4 î Pull in a disc 2) Push the shaft of the arm assy (trigger A )5 with a disc î Move the arm assy(trigger B)6 î Move the arm (trigger)7 This time, decide PLAY position of a disc by the stoppers (shaft) of the arm assy(L )8 and the arm assy (R )9. 3) Move the arm (trigger)7 î Push out the slider (loading)1for front î Move the gear(final)0 î Move the slider (loading)1 for this side î Loading down the clamper of sub chassis- and the roller4 î Finish a disc catching 4) Move the slider (loading)1 for this side î Move the slider (disc guide)= for right direction î Came off the moved lock of the arm assy (lock)~ î Move the arm assy (L)8 and the arm assy (R)9 î Keep off the stoppers from a disc. î Move the slider(loading)1 for this side î Turn on the switch ! î PLAY a disc
8

9

5

6

7

Note: Set the loading slider to full backward if reinstall it.
1

10 11

4

5

1

3 4

2

12

12
