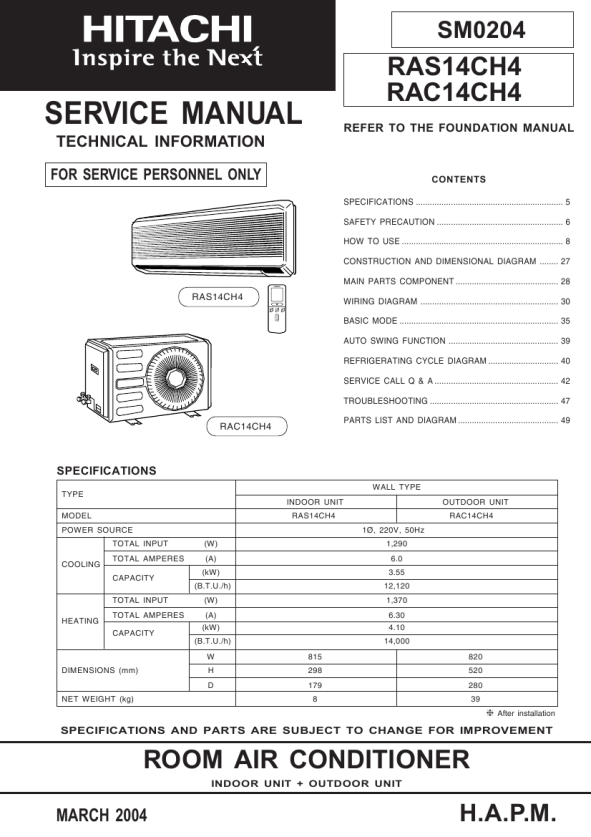

HITACHI RAS14CH4
Manual de Servicio

2 Press the
(TIME) button.

3 Set the current time with
the TIMER control button.

4 Press the

(TIME) button again. The time indication starts lighting instead of flashing.
G
PM

AM PM

G
PM

The time indication will disappear automatically in 10 second. To check the current time setting, press the (TIME) button twice. The setting of the current time is now complete.

Example: The current time is 1:30 p.m.

Set the turn-off time with the TIMER control button.
PM

2

3 Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button. The (OFF) mark starts lighting instead of flashing and the sign (RESERVED) lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
PM

Example: The device will turn off at 11:00p.m. The setting of turn-off time is now complete.

2

Set the turn-on time with the TIMER control button.

3 Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button. The (ON) mark starts lighting instead of flashing and the sign (RESERVED) lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
Example: The device will automatically turn on earlier so that the preset temperature can be reached at 7:00 a.m. The setting of the turn-on time is now complete.

AM

AM

Set the turn-on time with the TIMER control button.

4

5 Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button. The (ON) mark starts lighting instead of flashing and the sign (RESERVED) lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
PM

PM

AM AM

Example: The device will turn off at 10:30 p.m. and then automatically turn on earlier so that the preset temperature can be reached at 7:00 a.m. The settings of the turn-on/off times are now complete.

G

The timer may be used in three ways: off-timer, on-timer and ON/OFF (OFF/ON)-timer. Set the current time at first because it serves as a reference. As the time settings are stored in memory in the remote controller, you only have to press the button in order to use the same settings next time. (RESERVE)

G
