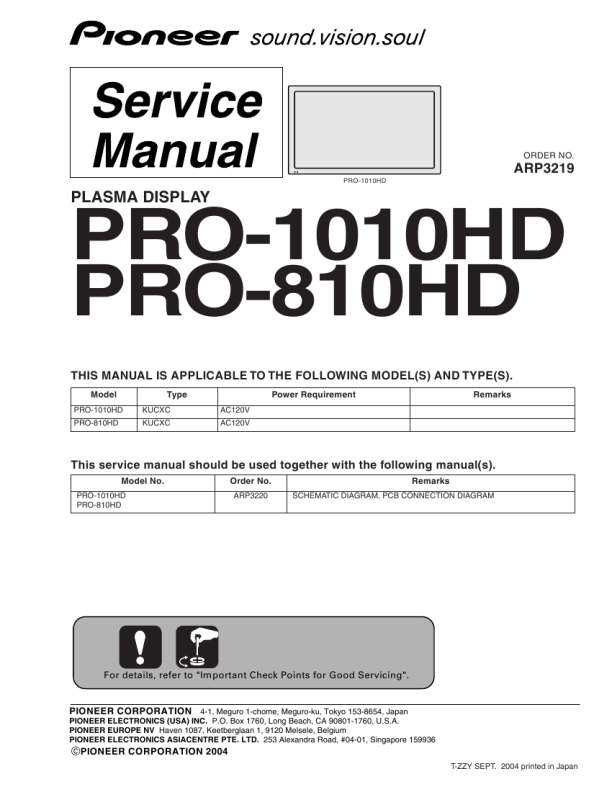

PIONEER PRO-1010HD/KUCXC
Manual de Servicio

5

6

7

8

4 X CONNECTOR A Assy, B Assy, 50 SCAN A Assy and B Assy
X CONNECTOR A and B Assy
A

1

Remove the enclosure sheet 1. 50 X DRIVE Assy

Note: Enclosure sheet 1 is attached to comply with the safety standards. Make sure that it will not be shifted or peeled off. If it is peeled off, securely reattach it in its original place.

6

6

6

Remove the one screw. Note: Be sure to remove this screw. If you don't, the connector on the LED Assy may be damaged.

2 3 4 5 6

Remove the jumper wire by removing the flat clamp. Remove the one nyron rivet.

6 2
Flat clamp Enclosure sheet 1

Front chassis VR (50M)

1

3 5

6
B

4
LED Assy

Remove the LED Assy. Remove the front chassis VR (50M) by removing the five screws.

7 8

Remove the eight screws. Remove the X CONNECTOR A and B Assy.

7

50 X DRIVE Assy
�4

7

�4

Note when reassembling the front chassis VR (50M) Remove or loosen the screws that secure the panel holder in order not to damage the front protect panel Assy.

C

8
X CONNECTOR B Assy

8
X CONNECTOR A Assy

50 SCAN A and B Assy

5 5
50 Y DRIVE Assy SCAN heatsink

1 2 3 4 5

Remove the one nylon rivet. Remove the jumper wire by removing the flat clamp. Remove the one screw. Remove the front chassis VL (50M) by removing the five screws. Remove the SCAN heatsink by removing the two screws.

4

4

4

D

4

Front chassis VL (50M)

Flat clamp

2

4

3 6 7 8 9
Remove the ten screws. Disconnect the two pin connectors. Remove the two spacers. Remove the 50 SCAN A and B Assy. 50 Y DRIVE Assy

1
E

6

7

6 8

�3

66

6 8

�3

7

6

Note when reassembling the front chassis VL (50M) Remove or loosen the screws that secure the panel holder in order not to damage the front protect panel Assy.

9
50 SCAN B Assy

9
50 SCAN A Assy
F

PRO-1010HD
5 6 7 8
