Inicio >> PIONEER >> PDP-S59/XTW/E5 Manual de Servicio

 0 artículo(s) en Su carrito

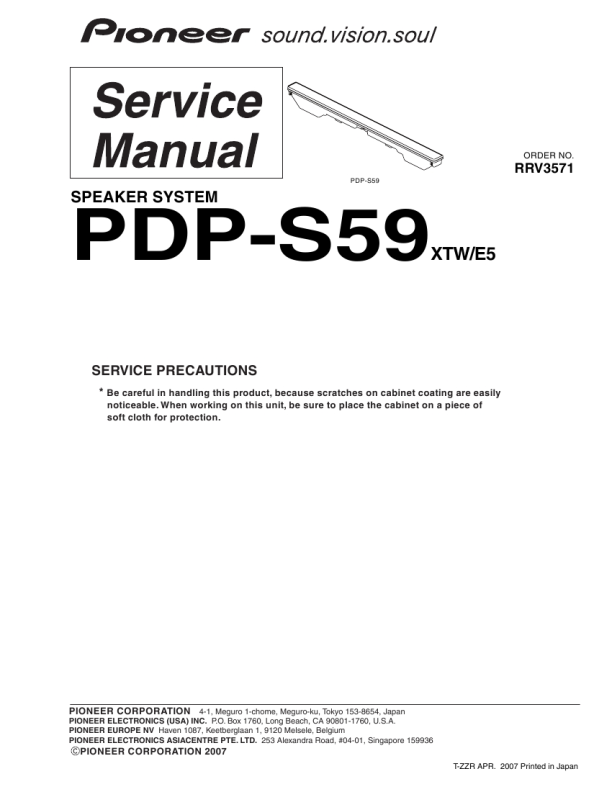

PIONEER PDP-S59/XTW/E5
Manual de Servicio


¡Twitee acerca de este producto y obtenga $1.00 de crédito en la tienda para uso!
  • Contiene diagramas del circuito
  • Descargable
  • Formato PDF
  • Manual completo
  • Idiomas: English
Precio: $4.99

Descripción del PIONEER PDP-S59/XTW/E5 Manual de Servicio

Manual de servicio completo en formato digital (archivo PDF). Los manuales de servicio por lo general contienen diagramas de circuitos, tarjetas de circuitos impresos, consejos para reparación, diagramas de cableado, diagramas de bloque y lista de refacciones. El Manual de Servicio (a veces llamado Manual de Reparación) es usado principalmente por los técnicos.

Si tan solo quiere saber cómo utilizar su televisión, reproductor de vídeo, reproductor de mp3, etc. Quizá lo que necesita es el Manual del Propietario. Después de colocar la orden le enviaremos las instrucciones de descarga a su dirección de e-mail.

The manual is available in languages: English

Not yet ready
You must purchase it first

Opiniones de los clientes
No hay comentarios de productos.

TEXT_PDF_SNIPPET
1

2

3

4

1. REASSEMBLY AND DISASSEMBLY PRECAUTIONS
1.1 GRILLE ASSY
A

Reasassembly

The Grill Assy is secured to the baffle plate with two-sided tape and bosses. When removing the Grill Assy, if is necessary to wear cotton gloves.

Disassembly
1. Insert the tip of your gloved finger into the gap between the Grill Assy in front and the corner of the baffle plate so that the Grill Assy is slightly lifted.

When reassembling the Grill Assy Remove the old two-sided tape attached to the rear panel of the Grill Assy and adhere new two-sided tape. Press the bosses into the baffle plate and press the entire grill into position.

1.2 WOOFER (Disassembly)
The woofer is secured to the baffle plate with four screws from the outside. To remove the woofer, first remove the baffle plate. (Remove the baffle plate first, because the cables from the Network Assy are short.)

Reasassembly
B

When reassembling the woofer, place it so that its connector plate is facing downward.

1.3 TWEETER (Disassembly)
2. Insert the gloved finger to the extent of the second joint into the gap between the cabinet and the Grill Assy. The tweeter is secured to the baffle plate with three screws from the outside. To remove the tweeter, first remove the baffle plate. (Remove the baffle plate first, because the cables from the Network Assy are short.)

Reasassembly

When reassembling the tweeter, place it so that its connector and screw -hole positions aliga with those on the baffle plate.

Network Assy (Caution)
� When removing the Network Assy, pull it out a little at a time from alternate sides, because it is seated tightly.
C

3. Alternately and gradually lift the left and right sides of the Grill Assy by about 5 cm, sliding gloved fingers along the cabinet. When lifting the Grill Assy, be sure to lift the left and right sides alternately, but not both sides simultaneously.

2 1 1
Input terminal

Network ASSY

D

Note: Be careful not to bend the Grill Assy too far. Otherwise, it may be damaged. O : Good example X : Bad example

Grille ASSY

Baffle Assy (Caution)
� When reassembling the cabinet and the baffle plate, secure the screws in the order shown in the figure below:

E

Baffle

1
Grille ASSY

2

3

4

5

Baffle

Baffle

F

2
1 2

PDP-S59
3 4
