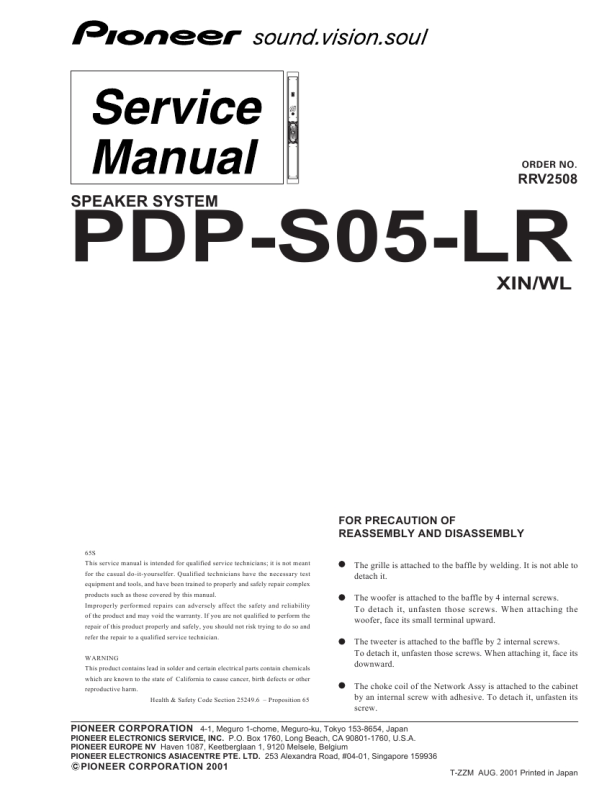

PIONEER PDP-S05-LRWL
Manual de Servicio

ORDER NO.

RRV2508

PDP-S05-LR
XIN/WL

SPEAKER SYSTEM

FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
65S This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 � Proposition 65

The grille is attached to the baffle by welding. It is not able to detach it. The woofer is attached to the baffle by 4 internal screws. To detach it, unfasten those screws. When attaching the woofer, face its small terminal upward. The tweeter is attached to the baffle by 2 internal screws. To detach it, unfasten those screws. When attaching it, face its downward. The choke coil of the Network Assy is attached to the cabinet by an internal screw with adhesive. To detach it, unfasten its screw.

PIONEER CORPORATION

4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2001

T-ZZM AUG. 2001 Printed in Japan
