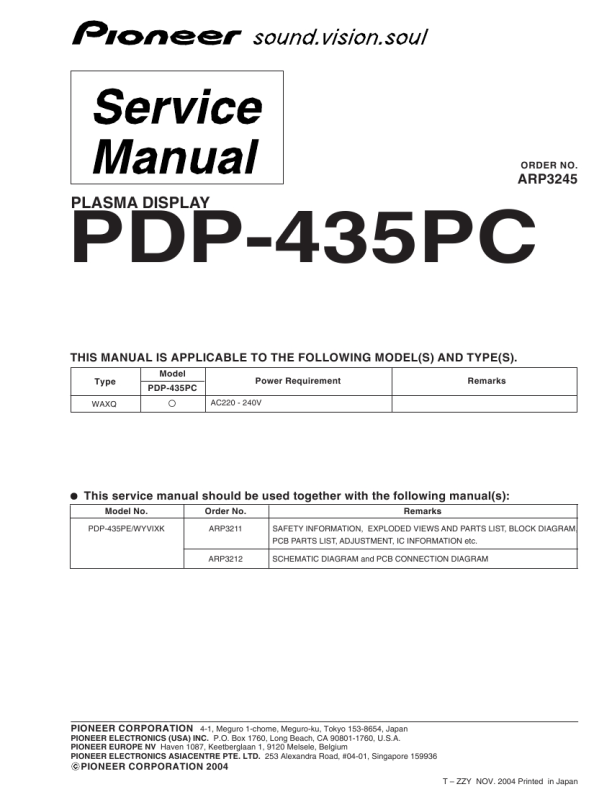

PDP-435PC-WAXQ[1] Manual de Servicio
0 artículo(s) en Su carrito
Opiniones de los clientes
No hay comentarios de productos.
TEXT_PDF_SNIPPET
1
2
3
4
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES:
A
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 56 x 101 561 RD1/4PU 5 6 1 J 47k 47 x 103 473 RD1/4PU 4 7 3 J 0.5 R50 RN2H R 5 0 K 1 1R0 RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k 562 x 101 5621 RN1/4PC 5 6 2 1 F
Parts of the packing section are all mentioned in this manual.
PACKING SECTION
16 15
B
2
17
3
11 7 6 13 5 9
C
PACKING Parts List
Mark No. > 1 2 3 Description Power Cord Wiping Cloth Binder Assy Center Pad (43) Mirror Mat Pad (PP T- L) Pad (PP T- R) Pad (PP B- L) Pad (PP B- R) Carton 43 (PC) Part No. ADG1209 AED1208 AEC1908 AHA2336 AHG1284 AHA2390 AHA2391 AHA2392 AHG2393 AHD3314 AHD3308 AHG1310 AHG1338 ARM1238 AEB1384 ATX1039 AAX2946
1 14
4 5 6 7 8 9 10
8 12
4
11 Upper Carton (435PC) 12 Vinyl Bag 13 Vinyl Bag S 14 Caution Card 15 Speaker Cushion 16 Ferrite Core NSP 17 CCC Label
