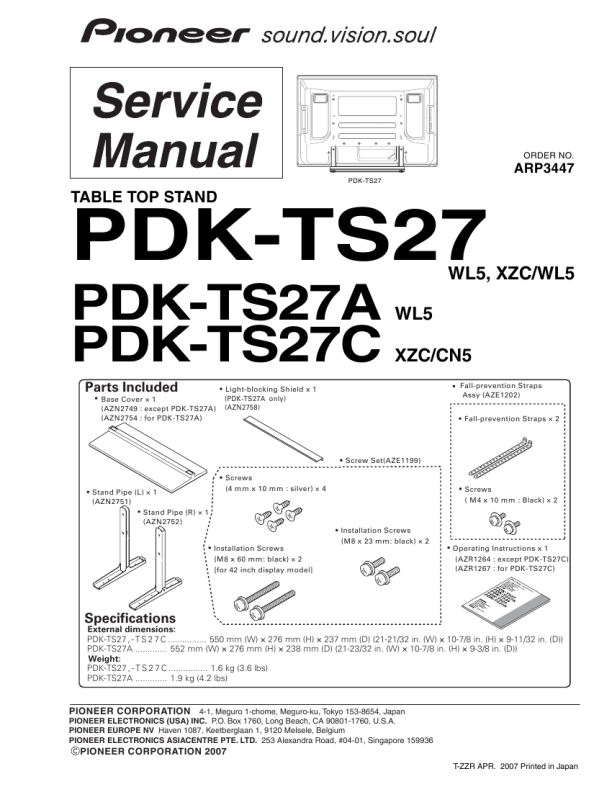

PIONEER PDK-TS27/WL5
Manual de Servicio

1

2

3

4

1. EXPLODED VIEWS AND PARTS LIST
A

NOTES : · Parts marked by � NSP � are generally unavailable because they are not in our Master Spare Parts List. · The> mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.

1.1 PACKING

B

3/6 Protecter / Top

5/6 Protection Sheet

Shield
C

Tape

6/6 Protecter / Bag 4/6 Protecter / Middle

6/6 Protecter / Bag

D

2/6 Protecter

1/6 Packing Case

Tape

PACKING parts List
E

Mark No. 1 1 1 1 2 3 4 5 NSP NSP NSP

Description Packing Set ( WL5) Packing Set ( XZC/WL5) Packing Set ( TS27A/WL5) .... .... .... 1..Screw Set 2..Screws (4 x 10) x 4

Part No. AZH1306 AZH1305

Mark No. 6 NSP 7

Description 1..Fall-prevention Straps Assy 2..Straps x 2 2..Screws (M4 x 10) x 2

Part No. AZE1202

Packing Set ( TS27C/XZC/CN5) AZH1319 AZH1307

Operating Instructions AZR1264 (English/French/Spanish/German/ Italian/ Dutch)

7 AZE1199

Operating Instructions (Chinese)AZR1267 (PDK-TS27C/XZC/CN5 Only)

F

2..Installation Screws (M8 x 60) x 2 2..Installation Screws (M8 x 23) x 2

2
1 2

PDK-TS27
3 4
