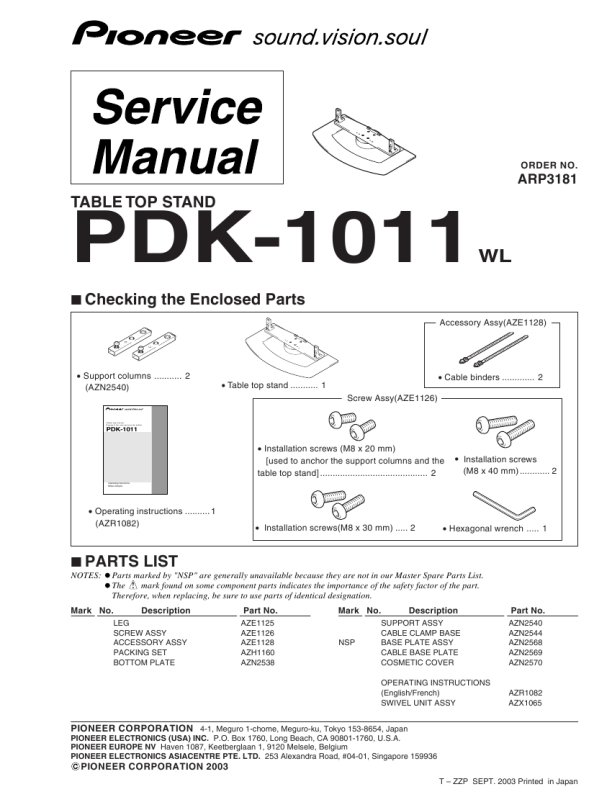

ORDER NO.
ARP3181
TABLE TOP STAND
PDK-1011
7 Checking the Enclosed Parts
� Support columns ........... 2 (AZN2540) � Table top stand ........... 1 Screw Assy(AZE1126)
Table top stand Support de couverture de table
WL
Accessory Assy(AZE1128)
� Cable binders ............. 2
PDK-1011
� Installation screws (M8 x 20 mm) [used to anchor the support columns and the table top stand] ........................................... 2
Operating instructions Mode d�emploi
� Installation screws (M8 x 40 mm) ............ 2
� Operating instructions .......... 1 (AZR1082)
� Installation screws(M8 x 30 mm) ..... 2
� Hexagonal wrench ..... 1
7 PARTS LIST
NOTES:
Mark No.
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
Description Part No.
AZE1125 AZE1126 AZE1128 AZH1160 AZN2538
Mark No.
Description
Part No.
AZN2540 AZN2544 AZN2568 AZN2569 AZN2570
LEG SCREW ASSY ACCESSORY ASSY PACKING SET BOTTOM PLATE
NSP
SUPPORT ASSY CABLE CLAMP BASE BASE PLATE ASSY CABLE BASE PLATE COSMETIC COVER OPERATING INSTRUCTIONS (English/French) SWIVEL UNIT ASSY
AZR1082 AZX1065
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2003
T � ZZP SEPT. 2003 Printed in Japan
|
