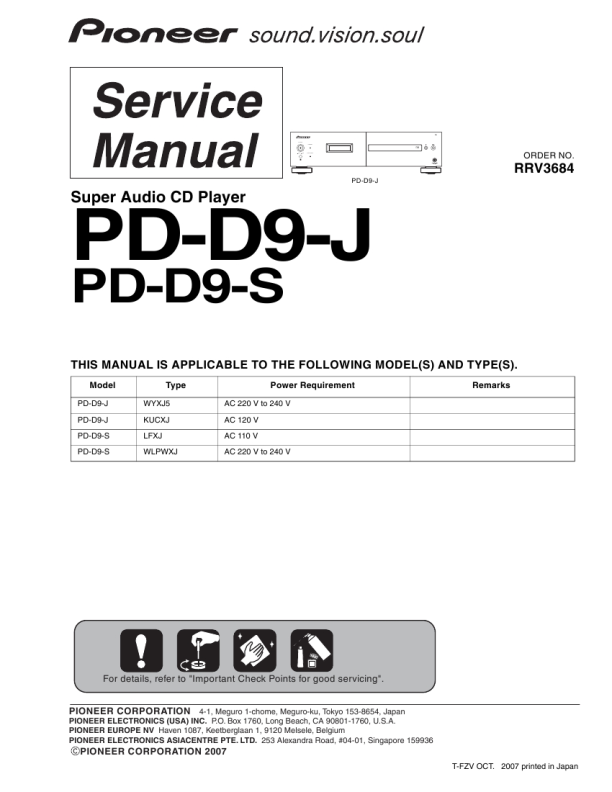

PIONEER PD-D9-J/WYXJ5
Manual de Servicio

1

2

3

4

8.5 MECHANISM ADJUSTMENT
A

1 Tangential and Radial Height Coarse Adjustment START
� Remove the 05SD Pickup Assy from the Traverse Mechanism Assy-S. � Remove the joint and the joint spring of the 05SD Pickup Assy.

05SD Pickup Assy

B

Note: Before removing the flexible cable for the pickup, soldering of the pickup circuit is necessary. For details, see "7. DISASSEMBLY".

Joint Joint Spring

� Pass through the guide shaft to a new 05SD Pickup Assy. � Attach it to the Traverse Mechanism Assy-S.
C

05SD Pickup Assy

Guide Shaft

D

� Put the joint between the Tangential (or Radial) adjustment screw and the mechanism base and turn each screw to adjust the height. (Refer to "8.1 ADJUSTMENT ITEMS AND LOCATION".)

Joint

7.5mm Mechanism base
E

� Attach the Traverse Mechanism Assy-S to the 05 LOADER Assy. � Turn it over and attach the joint and the joint spring. � Arrange the flexible cables. (Refer to "7. DISASSEMBLY".)
