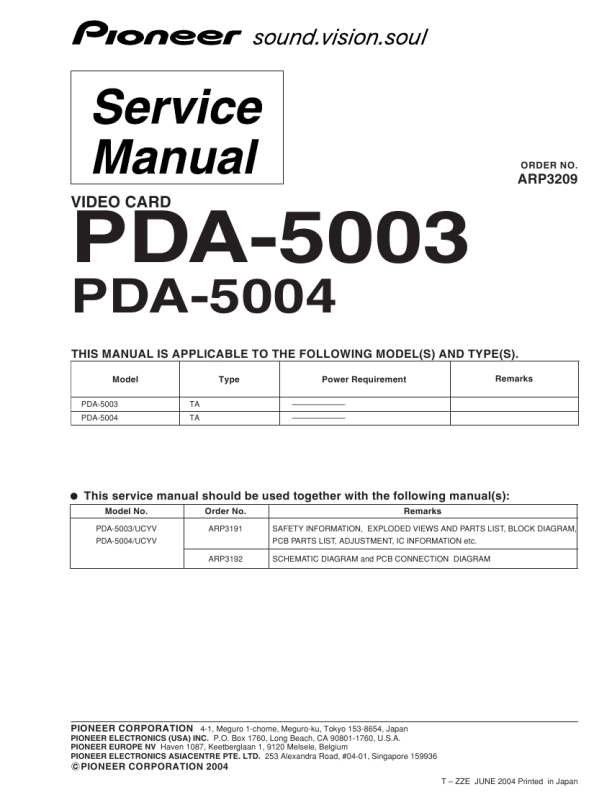

PIONEER PDA-5004/UCYV5
Manual de Servicio

1

2

3

4

1. CONTRAST OF MISCELLANEOUS PARTS
A

NOTES:

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.

CONTRAST TABLE for PDA-5003
PDA-5003/UCYV5 and PDA-5003/UCYV are constructed the same except for the following :
Ref. No. Mark
B Destination Label 5 Not used AAX3315 No.1

Symbol and Description

Part No. PDA-5003 PDA-5003 /UCYV /UCYV5

Remarks

Notes : � The numbers in the remarks column correspond to the numbers on the � EXPLODED VIEWS �.

CONTRAST TABLE for PDA-5004
PDA-5004/UCYV5 and PDA-5004/UCYV are constructed the same except for the following :
C

Ref. No. Mark

Symbol and Description

Part No. PDA-5004 PDA-5004 /UCYV /UCYV5
Not used AAX3315

Remarks

Destination Label 5

No.1

Notes : � The numbers in the remarks column correspond to the numbers on the � EXPLODED VIEWS �.

EXPLODED VIEWS
D

� Packing

No.1

E

No.1

F

2
1 2

PDA-5003
3 4
