SONY PCG-R505JS

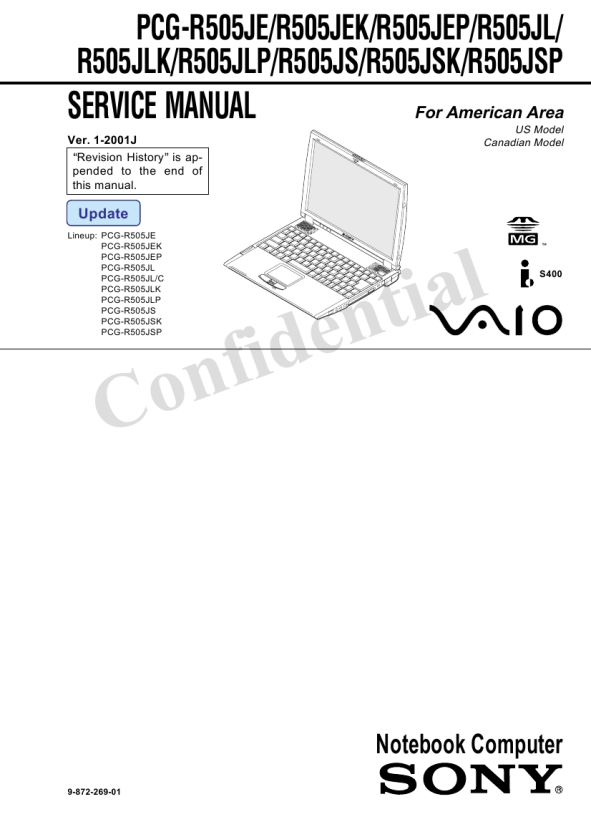

Manual de Servicio

CHAPTER 5. EXPLODED VIEWS AND PARTS LIST
NOTE:
� The mechanical parts with no reference number in the exploded views are not supplied. � Items marked � * � are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. � When the same reference numbers are written down in the list, please use the one listed in the first place as the main part.
The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié.

Confidential
5-1 PCG-R505JE/R505JEK/R505JEP/R505JL/R505JLK/ R505JLP/R505JS/R505JSK/R505JSP (AM)
