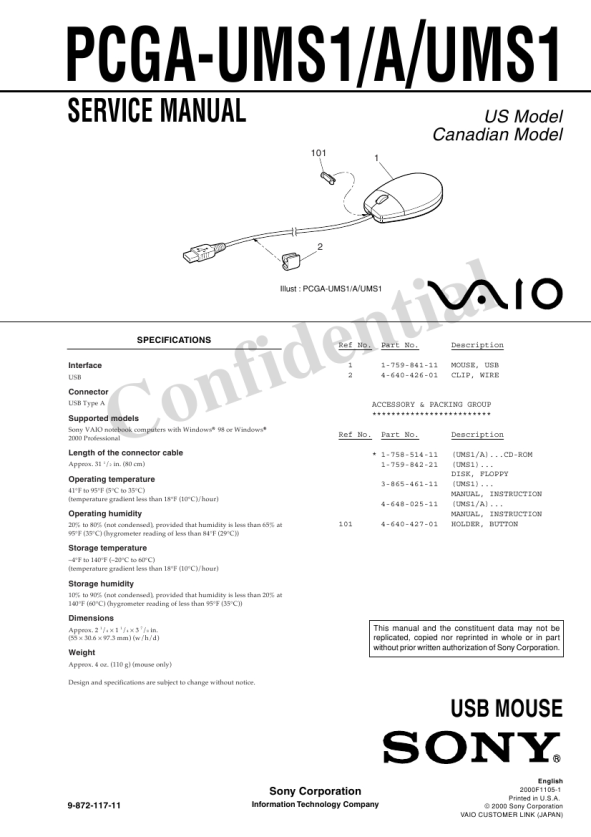

SONY PCGAUMS1
Manual de Servicio

PCGA-UMS1/A/UMS1
SERVICE MANUAL
101 1

US Model Canadian Model

2

Interface
USB

Connector
USB Type A

al ti en id nf o C
Illust : PCGA-UMS1/A/UMS1

SPECIFICATIONS

Ref No. 1 2

Part No.

Description

Supported models
Sony VAIO notebook computers with Windows 98 or Windows 2000 Professional

ACCESSORY & PACKING GROUP ************************* 1-759-841-11 4-640-426-01 Part No.

MOUSE, USB CLIP, WIRE

Ref No.

Description (UMS1/A)...CD-ROM (UMS1)... DISK, FLOPPY (UMS1)... MANUAL, INSTRUCTION (UMS1/A)... MANUAL, INSTRUCTION HOLDER, BUTTON

Length of the connector cable
Approx. 31 1/2 in. (80 cm)

* 1-758-514-11 1-759-842-21 3-865-461-11 4-648-025-11 101 4-640-427-01

Operating temperature
41°F to 95°F (5°C to 35°C) (temperature gradient less than 18°F (10°C)/hour)

Operating humidity
20% to 80% (not condensed), provided that humidity is less than 65% at 95°F (35°C) (hygrometer reading of less than 84°F (29°C))

Storage temperature
�4°F to 140°F (�20°C to 60°C) (temperature gradient less than 18°F (10°C)/hour)

Storage humidity
10% to 90% (not condensed), provided that humidity is less than 20% at 140°F (60°C) (hygrometer reading of less than 95°F (35°C))

Dimensions
Approx. 2 1/4 � 1 1/4 � 3 7/8 in. (55 � 30.6 � 97.3 mm) (w/h/d)

Weight
Approx. 4 oz. (110 g) (mouse only) Design and specifications are subject to change without notice.

This manual and the constituent data may not be replicated, copied nor reprinted in whole or in part without prior written authorization of Sony Corporation.

USB MOUSE
English 2000F1105-1 Printed in U.S.A. © 2000 Sony Corporation VAIO CUSTOMER LINK (JAPAN)

Sony Corporation
9-872-117-11
Information Technology Company
