SONY MZR70
Manual de Servicio


¡Twitee acerca de este producto y obtenga $1.00 de crédito en la tienda para uso!
  • Contiene diagramas del circuito
  • Descargable
  • Formato PDF
  • Manual completo
  • Idiomas: English
Precio: $4.99

Descripción del SONY MZR70 Manual de Servicio

Manual de servicio completo en formato digital (archivo PDF). Los manuales de servicio por lo general contienen diagramas de circuitos, tarjetas de circuitos impresos, consejos para reparación, diagramas de cableado, diagramas de bloque y lista de refacciones. El Manual de Servicio (a veces llamado Manual de Reparación) es usado principalmente por los técnicos.

Si tan solo quiere saber cómo utilizar su televisión, reproductor de vídeo, reproductor de mp3, etc. Quizá lo que necesita es el Manual del Propietario. Después de colocar la orden le enviaremos las instrucciones de descarga a su dirección de e-mail.

The manual is available in languages: English

Not yet ready
You must purchase it first

Opiniones de los clientes
No hay comentarios de productos.

TEXT_PDF_SNIPPET
� Adjustment method of VC PWM Duty (L) (mode number: 762) 1. Select the manual mode of the test mode, and set the mode number 762. (See page 14)
LCD display

� Adjustment method of VC PWM Duty (H) (mode number: 765) 1. Select the manual mode of the test mode, and set the mode number 765. (See page 14)
LCD display

762

VclPWM

765

VchPWM

2. Connect a digital voltmeter to the TP915 (VC) on the MAIN board, and adjust [VOL +] key (voltage up) or [VOL --] key (voltage down) so that the voltage becomes 2.5 ± 0.02 V. Proceed to the next step, if voltage is already adjusted.
digital voltmeter MAIN board TP915 (VC) TP5105 (GND)

2. Connect a digital voltmeter to the TP915 (VC) on the MAIN board, and adjust [VOL +] key (voltage up) or [VOL --] key (voltage down) so that the voltage becomes 2.5 ± 0.02 V. Proceed to the next step, if voltage is already adjusted.
digital voltmeter MAIN board TP915 (VC) TP5105 (GND)

3. Press the X key to write the adjusted value. � Adjustment method of VREM PWM Duty (H) (mode number: 763) 1. Select the manual mode of the test mode, and set the mode number 763. (See page 14)
LCD display

3. Press the X key to write the adjusted value. � Adjustment method of VREM PWM Duty (H) (mode number: 766) 1. Select the manual mode of the test mode, and set the mode number 766. (See page 14)
LCD display

763

VrhVcl

766

VrhVch

2. Connect a digital voltmeter to the TP914 (VR) on the MAIN board, and adjust [VOL +] key (voltage up) or [VOL --] key (voltage down) so that the voltage becomes 2.75 ± 0.02 V. Proceed to the next step, if voltage is already adjusted.
digital voltmeter MAIN board TP914 (VC) TP5105 (GND)

2. Connect a digital voltmeter to the TP914 (VR) on the MAIN board, and adjust [VOL +] key (voltage up) or [VOL --] key (voltage down) so that the voltage becomes 2.75 ± 0.02 V. Proceed to the next step, if voltage is already adjusted.
digital voltmeter MAIN board TP914 (VC) TP5105 (GND)

3. Press the X key to write the adjusted value. � Adjustment method of VREM PWM Duty (L) (mode number: 764) 1. Select the manual mode of the test mode, and set the mode number 764. (See page 14)
LCD display

3. Press the X key to write the adjusted value. � Adjustment method of VREM PWM Duty (L) (mode number: 767) 1. Select the manual mode of the test mode, and set the mode number 767. (See page 14)
LCD display

764

VrlVcl

767

VrlVch

2. Connect a digital voltmeter to the TP914 (VR) on the MAIN board, and adjust [VOL +] key (voltage up) or [VOL --] key (voltage down) so that the voltage becomes 2.5 ± 0.02 V. Proceed to the next step, if voltage is already adjusted.
digital voltmeter MAIN board TP914 (VC) TP5105 (GND)

2. Connect a digital voltmeter to the TP914 (VR) on the MAIN board, and adjust [VOL +] key (voltage up) or [VOL --] key (voltage down) so that the voltage becomes 2.5 ± 0.02 V. Proceed to the next step, if voltage is already adjusted.
digital voltmeter MAIN board TP914 (VC) TP5105 (GND)

3. Press the X key to write the adjusted value.

3. Press the X key to write the adjusted value.

� 21 �

Quizás también quiera comprar

$4.99

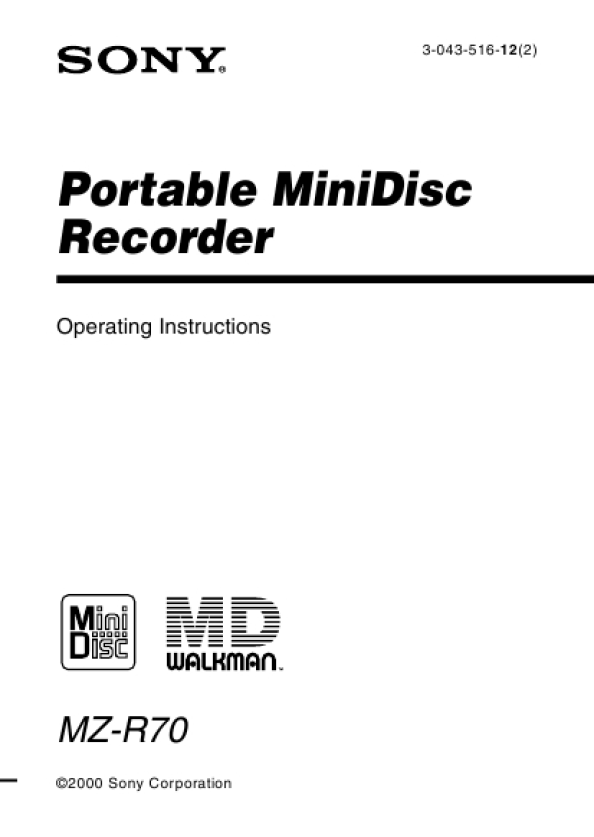

MZR70 SONY
