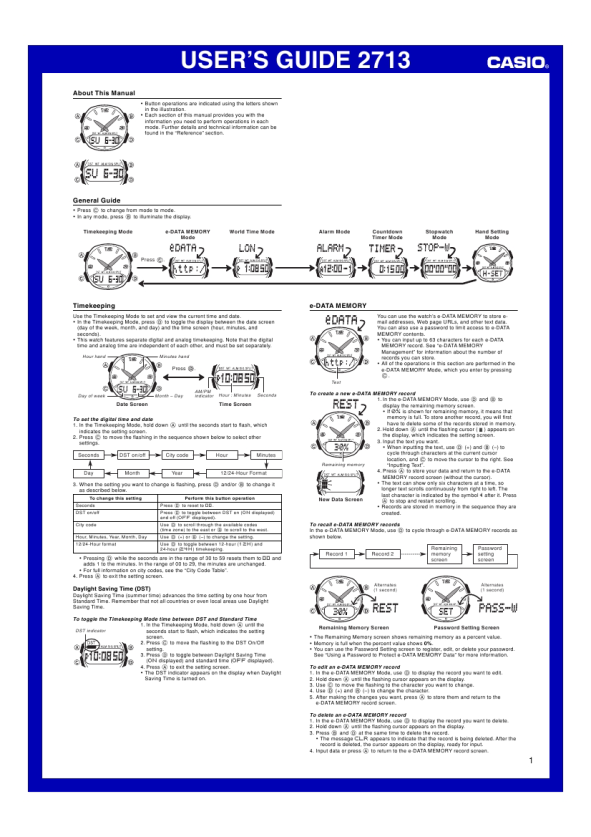

USER�S GUIDE 2713
About This Manual
� Button operations are indicated using the letters shown in the illustration. � Each section of this manual provides you with the information you need to perform operations in each mode. Further details and technical information can be found in the �Reference� section.
General Guide
� Press C to change from mode to mode. � In any mode, press B to illuminate the display.
Timekeeping Mode e-DATA MEMORY Mode World Time Mode Alarm Mode Countdown Timer Mode Stopwatch Mode Hand Setting Mode
Press
.
Timekeeping
Use the Timekeeping Mode to set and view the current time and date. � In the Timekeeping Mode, press D to toggle the display between the date screen (day of the week, month, and day) and the time screen (hour, minutes, and seconds). � This watch features separate digital and analog timekeeping. Note that the digital time and analog time are independent of each other, and must be set separately.
Hour hand Minutes hand
e-DATA MEMORY
You can use the watch�s e-DATA MEMORY to store email addresses, Web page URLs, and other text data. You can also use a password to limit access to e-DATA MEMORY contents. � You can input up to 63 characters for each e-DATA MEMORY record. See �e-DATA MEMORY Management� for information about the number of records you can store. � All of the operations in this section are performed in the e-DATA MEMORY Mode, which you enter by pressing C.
Text
Press
.
Day of week
Month � Day
AM/PM indicator
Hour : Minutes
Seconds
Date Screen
Time Screen
To set the digital time and date 1. In the Timekeeping Mode, hold down A until the seconds start to flash, which indicates the setting screen. 2. Press C to move the flashing in the sequence shown below to select other settings.
Seconds DST on/off City code Hour Minutes
To create a new e-DATA MEMORY record 1. In the e-DATA MEMORY Mode, use D and B to display the remaining memory screen. � If ^% is shown for remaining memory, it means that memory is full. To store another record, you will first have to delete some of the records stored in memory. 2. Hold down A until the flashing cursor ( p) appears on the display, which indicates the setting screen. 3. Input the text you want. � When inputting the text, use D (+) and B (�) to cycle through characters at the current cursor location, and C to move the cursor to the right. See Remaining memory �Inputting Text�.
4. Press A to store your data and return to the e-DATA MEMORY record screen (without the cursor). � The text can show only six characters at a time, so longer text scrolls continuously from right to left. The last character is indicated by the symbol < after it. Press A to stop and restart scrolling. � Records are stored in memory in the sequence they are created.
Day
Month
Year
12/24-Hour Format
3. When the setting you want to change is flashing, press D and/or B to change it as described below.
To change this setting Seconds DST on/off City code Hour, Minutes, Year, Month, Day 12/24-Hour format Perform this button operation Press D to reset to 00. Press D to toggle between DST on (ON displayed) and off (OFF displayed). Use D to scroll through the available codes (time zone) to the east or B to scroll to the west. Use D (+) or B (�) to change the setting. Use D to toggle between 12-hour (12H) and 24-hour (24H) timekeeping.
New Data Screen
To recall e-DATA MEMORY records In the e-DATA MEMORY Mode, use D to cycle through e-DATA MEMORY records as shown below.
Record 1 Record 2 Remaining memory screen
Password setting screen
� Pressing D while the seconds are in the range of 30 to 59 resets them to 00 and adds 1 to the minutes. In the range of 00 to 29, the minutes are unchanged. � For full information on city codes, see the �City Code Table�. 4. Press A to exit the setting screen.
Daylight Saving Time (DST)
Daylight Saving Time (summer time) advances the time setting by one hour from Standard Time. Remember that not all countries or even local areas use Daylight Saving Time.
Alternates (1 second)
Alternates (1 second)
To toggle the Timekeeping Mode time between DST and Standard Time 1. In the Timekeeping Mode, hold down A until the DST indicator seconds start to flash, which indicates the setting screen. 2. Press C to move the flashing to the DST On/Off setting. 3. Press D to toggle between Daylight Saving Time (ON displayed) and standard time (OFF displayed). 4. Press A to exit the setting screen. � The DST indicator appears on the display when Daylight Saving Time is turned on.
Remaining Memory Screen
Password Setting Screen
� The Remaining Memory screen shows remaining memory as a percent value. � Memory is full when the percent value shows 0%. � You can use the Password Setting screen to register, edit, or delete your password. See �Using a Password to Protect e-DATA MEMORY Data� for more information.
To edit an e-DATA MEMORY record 1. In the e-DATA MEMORY Mode, use D to display the record you want to edit. 2. Hold down A until the flashing cursor appears on the display. 3. Use C to move the flashing to the character you want to change. 4. Use D (+) and B (�) to change the character. 5. After making the changes you want, press A to store them and return to the e-DATA MEMORY record screen. To delete an e-DATA MEMORY record 1. In the e-DATA MEMORY Mode, use D to display the record you want to delete. 2. Hold down A until the flashing cursor appears on the display. 3. Press B and D at the same time to delete the record. � The message CLR appears to indicate that the record is being deleted. After the record is deleted, the cursor appears on the display, ready for input. 4. Input data or press A to return to the e-DATA MEMORY record screen.
1
