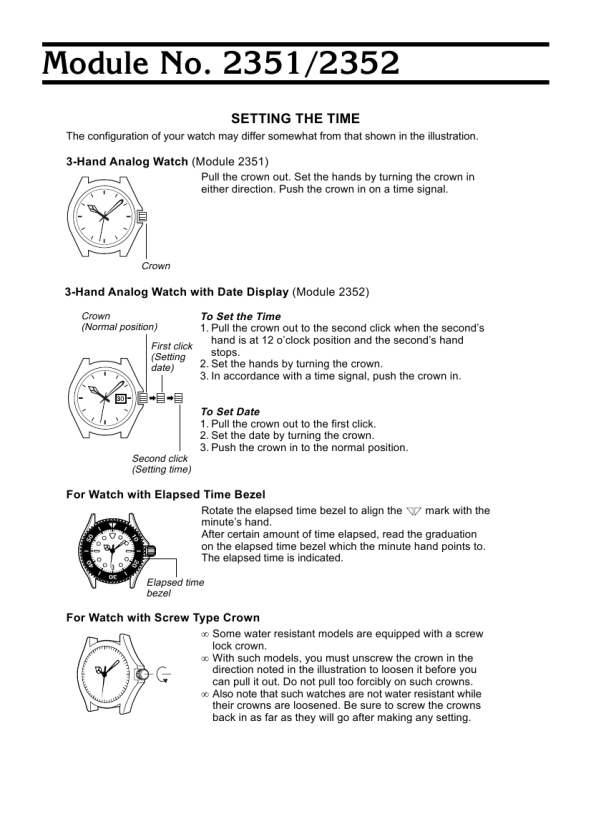

Module No. 2351/2352
SETTING THE TIME
The configuration of your watch may differ somewhat from that shown in the illustration.
3-Hand Analog Watch (Module 2351)
Pull the crown out. Set the hands by turning the crown in either direction. Push the crown in on a time signal.
Crown
3-Hand Analog Watch with Date Display (Module 2352)
Crown (Normal position)
To Set the Time 1. Pull the crown out to the second click when the second�s hand is at 12 o�clock position and the second�s hand First click (Setting stops. date) 2. Set the hands by turning the crown. 3. In accordance with a time signal, push the crown in. To Set Date 1. Pull the crown out to the first click. 2. Set the date by turning the crown. 3. Push the crown in to the normal position.
Second click (Setting time)
For Watch with Elapsed Time Bezel
Rotate the elapsed time bezel to align the mark with the minute�s hand. After certain amount of time elapsed, read the graduation on the elapsed time bezel which the minute hand points to. The elapsed time is indicated.
Elapsed time bezel
For Watch with Screw Type Crown
� Some water resistant models are equipped with a screw lock crown. � With such models, you must unscrew the crown in the direction noted in the illustration to loosen it before you can pull it out. Do not pull too forcibly on such crowns. � Also note that such watches are not water resistant while their crowns are loosened. Be sure to screw the crowns back in as far as they will go after making any setting.
